Smart Box connects any Android™ smartphone or tablet to the vehicle’s systems — transforming standard mobile devices into professional telematics tools for fleet management, navigation, and diagnostics.
With a single USB-C connection, it enables real-time, two-way data exchange between the Android device and the vehicle’s electronic systems, while simultaneously charging the mobile device.
By bridging the gap between mobile technology and automotive hardware, Smart Box allows Android applications to directly read, process, and transmit vehicle data — unlocking new opportunities for intelligent mobility.
Compact, lightweight, and built to automotive standards, Smart Box offers an open and flexible gateway for system integrators and fleet operators who need:
seamless connection between vehicles and Android devices
simplified development of fleet and diagnostic applications
a future-proof, upgradeable hardware platform
- Two Versions: Basic and ProAndroid Operating System (PRO Version)
- Built-in GPS (PRO Version)
- 4G LTE Modem (PRO version)
- Built-in Wi-Fi (PRO version)
- 9-axis inertial platform (PRO version)
- Built-in Bluetooth Module
- 5 RS232 serial ports + 2 optional RS485
- 10 I/O digital inputs/outputs
- 10 power outputs
- 1 input for Panic Button
- 1 passenger sensor input
- 1 input for ignition of the vehicle
- Microphone/Speaker Output
- Digitax SDK for development
- USB C connector
- Ethernet connector
- 2x Can Bus FMS, J1939, OBDII, ISO-11992 stack
- K-Line
- One-Wire Protocol

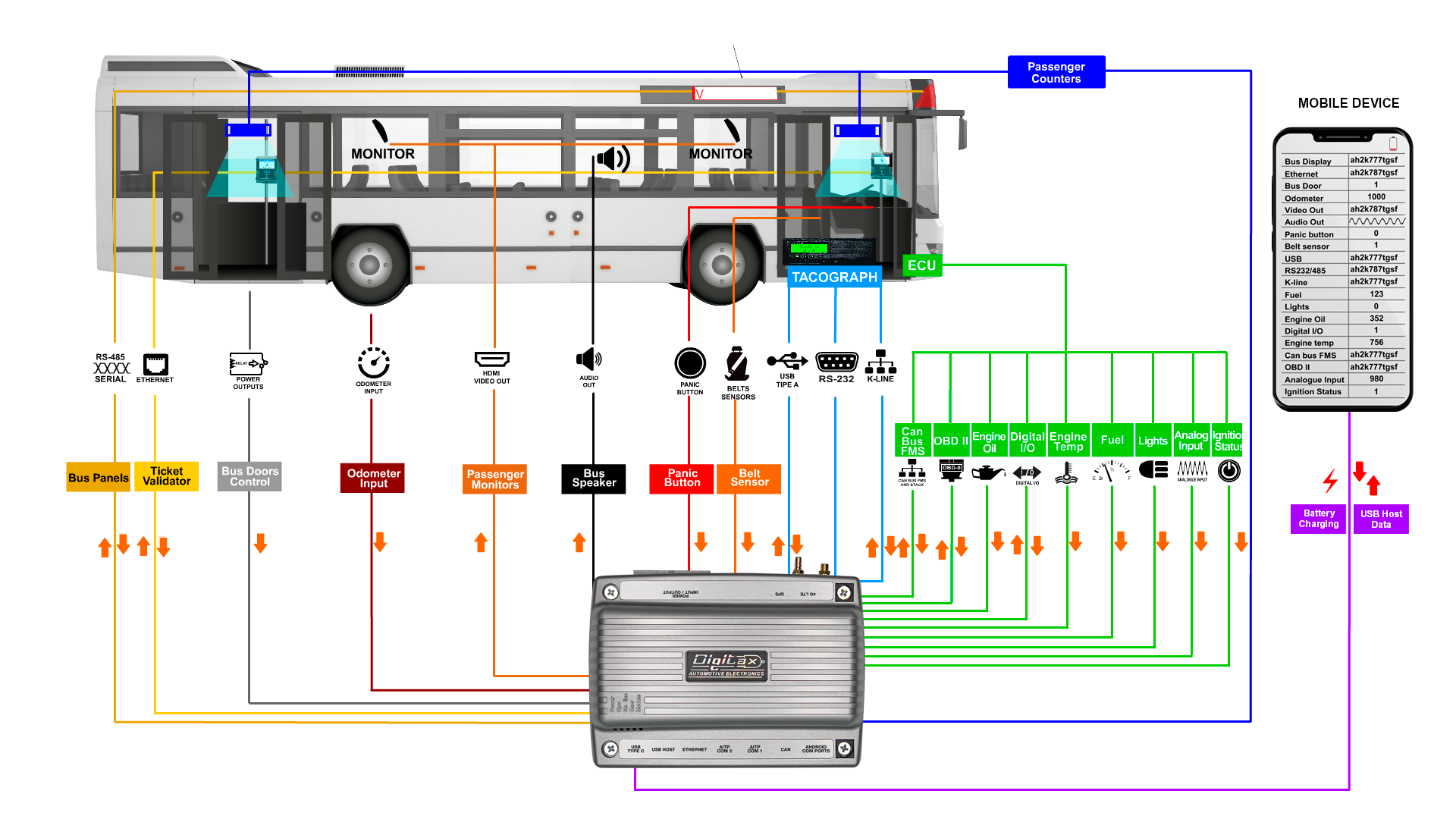

SMART BOX - CONNECTIVITIES
Expand Your Mobile Apps with Complete Automotive Interfaces
The Digitax Smart Box extends the full potential of Android applications, allowing them to interact directly with a vehicle’s hardware and software systems.
Through a single USB-C connection, Android smartphones and tablets can read and transmit data in real time, while remaining fully charged.
This capability turns ordinary mobile devices into professional-grade fleet and diagnostic tools — ideal for connected mobility applications.
Supported interfaces include:
CAN Bus (FMS, J1939, OBDII, ISO-11992)
RS232 / RS485 serial ports
Digital and analog I/O
One-Wire and K-Line protocols
Vehicle ignition, lights, panic button, and passenger sensors
Ethernet and USB-A connections
Smart Box delivers secure, low-latency data communication between Android applications and vehicle systems — enabling real-time monitoring, diagnostics, automation, and service management.

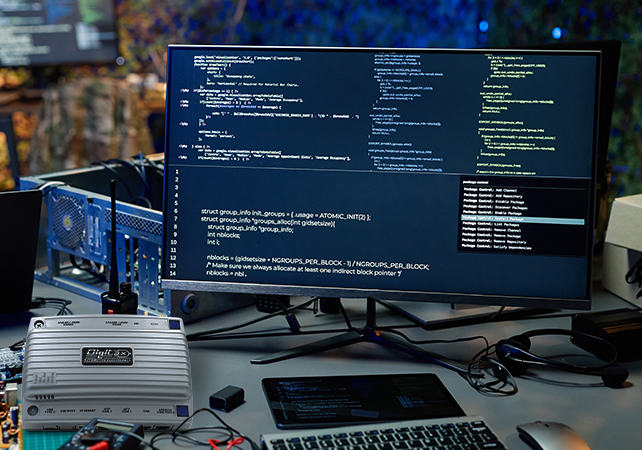

Digitax SDK for APP and solution integration
The Digitax SDK provides a complete, ready-to-use development environment for Android™ applications.
It simplifies the integration of complex automotive interfaces — such as CAN Bus, serial communication, and digital I/O — with Android-based systems, ensuring smooth and reliable data exchange.
Designed for developers and system integrators, the SDK includes:
Comprehensive APIs and libraries for hardware-level access
Sample code and testing tools for faster integration
Support for Android Studio and ADB environments
CAN Bus and RS232/RS485 communication management
Full technical assistance from the Digitax engineering team
With the Digitax SDK, developers can quickly create, customize, and deploy Android applications tailored to fleet management, diagnostics, and connected mobility operations.

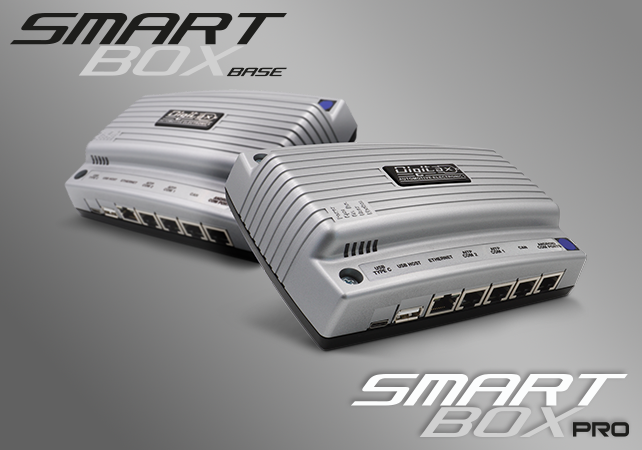

Two versions available
mart Box comes in two versions — Base and Pro — each designed to adapt to different professional needs.
• Smart Box Base
Acts as a central communication hub, managing the vehicle’s connectivity.
It collects and transmits data from sensors, CAN Bus, and other onboard systems to your Android smartphone or tablet via a simple USB-C connection.
The app on the paired device then processes, displays, and sends this information to your fleet server in real time.
• Smart Box Pro
Goes beyond data transfer — it includes a built-in Android module that lets you run your own applications directly on the device.
The smartphone or tablet becomes a control and monitoring terminal, while Smart Box handles GPS tracking, Wi-Fi, Bluetooth, and 4G LTE connectivity.
Both versions are fully compatible with the Digitax SDK, giving developers complete freedom to integrate, customize, and scale advanced automotive and telematics solutions.
Designed for professional automotive applications
Smart Box is engineered for professional and commercial vehicles that require constant control, data access, and remote management.
It serves both as an interface module and as a black box, providing full visibility over vehicle status, driver activity, and onboard systems.
Ideal for:
Public transport and fleet vehicles (buses, taxis, service fleets)
Heavy-duty and logistics vehicles (trucks, garbage collection)
Special vehicles (school buses, ambulances, emergency units)
Whether used for fleet tracking, maintenance monitoring, or safety management, Smart Box ensures real-time data collection and reliable communication between the vehicle and the control center.
*Pro Version supports integration with the Digitax Device Track platform for full fleet supervision

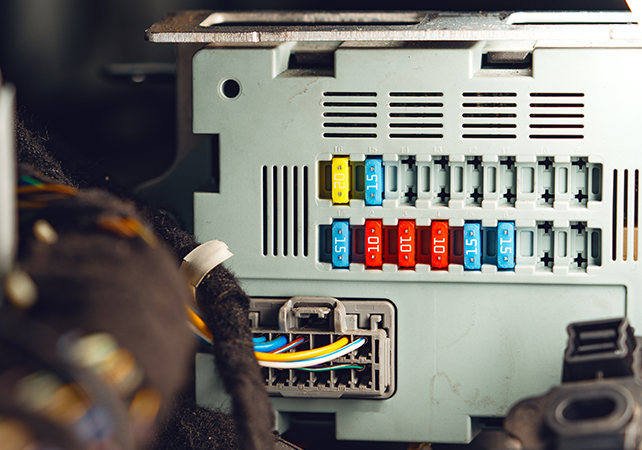

Direct connectivity with the vehicle
Smart Box connects directly to the vehicle’s control unit and onboard peripherals, enabling precise, real-time monitoring of system status and performance.
This direct integration allows immediate access to key vehicle data — from speed and engine status to diagnostics and telematics information.
When needed, Smart Box can also communicate via CAN Bus, supporting multiple automotive protocols, including:
FMS (Fleet Management System)
J1939
OBDII
ISO-11992
This flexibility makes it compatible with a wide range of vehicles and ensures seamless communication between the Smart Box, the vehicle’s ECU, and your Android applications.
Available in two versions: BASE and PRO
Smart Box is available in the BASE version and in the PRO version with Android module and GPS, WIFI, 4G LTE and Bluetooth.

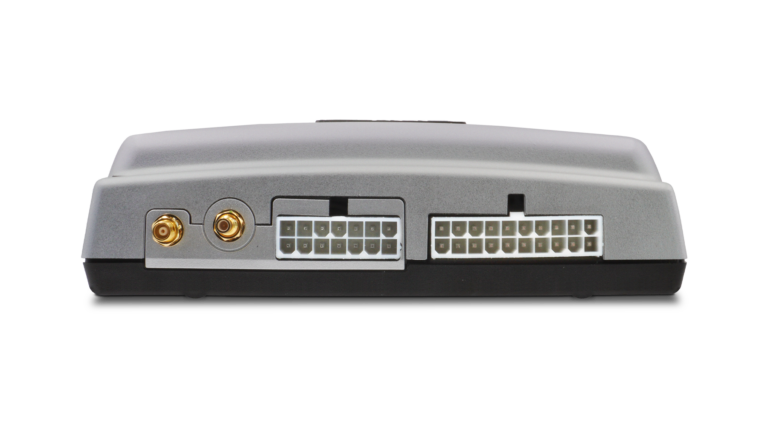

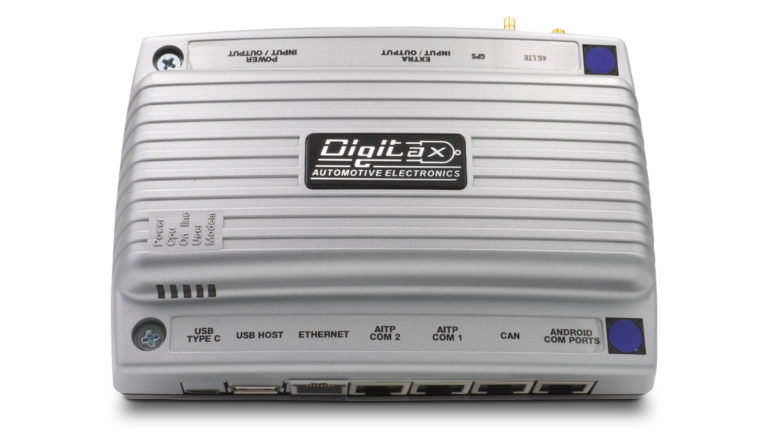

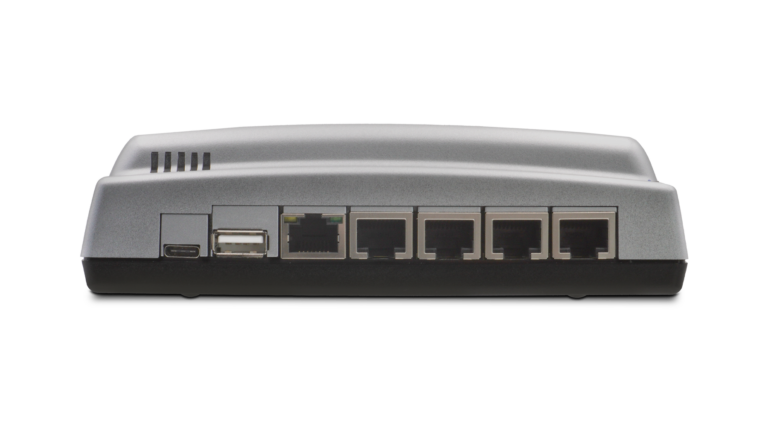

Lightweight and compact
Smart Box it’s perfect for unobtrusive installations inside your vehicle
PRO Version: Measuring just 155cm x 110cm x 45mm.
Weight just 400g.
BASE Version: Measuring just 155cm x 110cm x 45mm,
Weight just 250g.
Basic and Pro
[PRO Version]
[PRO Version]
[PRO Version]
[PRO Version]
TECHNICAL SPECIFICATIONS
CPUs | Fanless Device with Primary CPU Qualcomm MSM8909 chipset, Quad-core ARM Cortex-A7 64-bit CPU @1.1GHz. Adreno 304 GPU: OpenGL ES 3.02, OpenCL3, content security, and decreased power consumption AITP (Automotive Intensive Task Processor) Cortex ARM CPU processor for Taximeter and Automotive Intensive Tasks |
Ram Memory | +2GB LPDDR3 |
Can Bus | Double Can Bus interface OBD-II OBD2-FMS Stack |
Alarm and Security | Panic Button input / Emergency Switch input Internal Anti Tamper sensor |
Power Supply | 8 - 32 V with Surge Protector |
Battery | Internal Battery Package (option) |
Inertial Platform | 9-axis inertial platform to detect vehicle movement and crash situations |
Multimedia | Audio: MP3, AAC+,eAAC, AMR-NB, -WB, G.711, WMA 9/10 Pro Video: Encode:30fps 720P (H.264), 30fps WVGA (MPEG-4/VP8) Decode:30fps 1080P (H.264/MPEG-4/VP8/H.265 DivX4/5/6), 30fps WVGA (H.263) |
Remote Desktop Display | Possibility to view Android desktop from remote devices through Wi-Fi connection or wired LAN connection |
Operating Temperature | -20°C to 75°C |
Humidity | Humidity up to 95% non-condensing |
Vibration | Vibration Sine wave, 10 ~ 500 ~ 10Hz, 1.5G, 0.37oct/min 3 axis, 1hour/axis |
Storage Solid State Hard Disk Memory | 16GB EMMC |
SD | Up to 256 GB for external storage |
Communication Modem | LTE Cat 4 GSM / GPRS Class 12 HSUPA Modem with 150Mbit/s downlink and 50Mbit/s uplink data rates based on LTE network (max) 1 Sim Card slots |
GPS Receiver | Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in any environment |
Antennas | Internal GPS-WiFi-BT-LTE or External GPS-WiFi-BT-LTE Rugged Combo antenna (option) |
USB Ports | 1 USB 2.0 Host (with USB Support for Mouse and Keyboard) Hi-Speed 1 USB 2.0 / OTG Host / Device to debug and O.S. settings |
API provided | Soft/Hard Reset Soft Reset available through HW switch Soft Reset available through API calls |
Connectivity | Ethernet: 10/100 Mbps LAN Controller Wi-Fi Connection: 2.4G/5.8G, 802.11 a/b/g/n Bluetooth: class 2 BT2.1+EDR/3.0/4.1 LE |
Operating System | Android 7.X Development Tools Adb/Android Studio IDE with USB debugging support SDK for Android O.S. Sample code for SDK Digitax Framework (Digitax Libraries): GPS, Odometer, Taximeter, Hardware Keys, WatchDog, OTA, Stealth Mode Controller, Logs, And Restore, Light Dimmer, Hardware Identification, Alarm, Card Reader and Windows Status Serial port driver and test tools Digital I/O driver |
Dimension | 204 mm x 120 mm x 35 mm (WxHxD) |
Weight | 545 g |
FAQ
Smart Box allows Android smartphones and tablets to interact directly with vehicle systems, turning them into professional telematics tools.
It expands app capabilities for fleet management, diagnostics, and onboard monitoring — without needing additional hardware.
Smart Box BASIC acts as a connectivity hub, managing data flow between the vehicle and your app through a USB-C or RS232 connection.
Smart Box PRO includes an integrated Android module, GPS, 4G LTE, Wi-Fi, and Bluetooth, allowing applications to run directly on the device.
Smart Box is compatible with all professional vehicles, including:
Public transport fleets (buses, taxis, shuttles)
Heavy-duty and logistics vehicles (trucks, waste collection)
Emergency and special-purpose vehicles (ambulances, school buses)
- and any more
It supports CAN Bus, FMS, OBDII, and J1939 protocols for universal integration.
Smart Box interfaces directly with the vehicle’s ECU and peripheral systems via RS232, RS485, or CAN Bus connections.
It supports the main automotive communication standards, including:
FMS
J1939
OBDII
ISO-11992
This ensures compatibility with virtually any modern vehicle.
Yes. The Digitax Android SDK provides libraries, APIs, and code examples for seamless app integration.
Developers can manage CAN Bus, digital I/O, and diagnostic data directly from the app.
Explore SDK integration → Digitax SDK for Android
Yes, Smart Box complies with R10 automotive certification and meets Digitax’s industrial-grade standards for durability and safety.
Yes. In addition to serving as a connectivity hub, Smart Box can act as a black box, recording vehicle status, driver behavior, and GPS data for fleet supervision and analysis.
