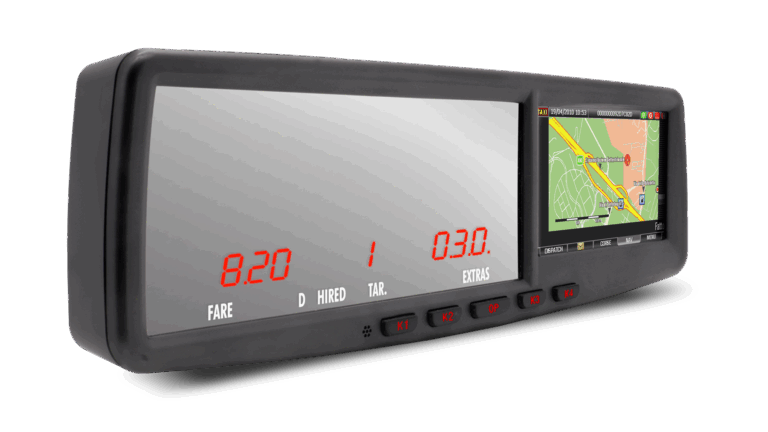

The M1 MDT is an advanced driver computer with an integrated certified taximeter, created for fleet management and ride dispatching.
Installed directly in the rearview mirror, it offers a compact and elegant all-in-one solution, eliminating the need for additional on-board devices.
Powered by Windows CE, it ensures stability, reliability, and compatibility with professional fleet management software.
It integrates a GPRS modem for real-time data transmission and a GPS receiver for precise vehicle tracking.
The 5-inch touchscreen display provides an intuitive, customizable interface, ensuring seamless operation for drivers and dispatchers.
Fully compliant with automotive regulations, M1 MDT is ideal for taxis, corporate fleets, and public transport operators.
Combining compact design, connectivity, and advanced functionality, it delivers a complete solution to optimize operations, reduce costs, and improve overall efficiency.
- Built-in taximeter
- Windows CE Operating System
- Built-in GPS
- Modem 3G
- EU MID + R10 + R21 certification
- 4 RS2322 Serial Ports
- 2 Digital Input/Output I/O
- 5 Power Outputs
- 1 Passenger Sensor Input
- 1 Input for Panic Button
- 1 Input for Odometer
- 1 Input for Engine Start
- Digitax SDK for Development
- 2 USB connectors
- K-Line
- On Wire Protocol
Download Technical Data Sheet
Dual CPU
The M1 MDT features a dual-processor architecture that separates computing and automotive control tasks to ensure stability, performance, and energy efficiency.
Main CPU
Samsung ARM 400 MHz processor
Optimized ARM architecture for efficient performance and low power consumption
Secondary CPU (AITP – Automotive Intensive Task Processor)
Manages power control and safe shutdown
Handles wheel pulse, speed, and distance calculation
Supports Wake-Up on Ring for remote activation
Provides Over-the-Air (OTA) software and firmware updates
Always active, it can switch the device and peripherals on or off automatically
This intelligent dual setup guarantees reliable operation, remote management, and optimized power control — ideal for continuous fleet operation.
Ideal for fleet management and job distribution
The M1 MDT is an all-in-one terminal that represents the state of the art in fleet management, combining power, compact design, and full connectivity for dispatching and control.
Key features:
GPRS modem for stable, real-time communication with the operations center
U-Blox 6 GPS receiver (50 channels) with GALILEO compatibility for precise vehicle positioning
Independent module management — GPS and GPRS can operate separately from the Windows CE system
Hardware MUX port for sending AT commands during active connections, enabling signal and status diagnostics
AITP processor autonomously manages communications and power supply, maintaining GPS and data transmission even when the main system is off
- Integration with the Digitax Device Track platform for full fleet supervision
This configuration ensures uninterrupted fleet monitoring, efficient data exchange, and reliable connectivity under all operating conditions.
Digitax SDK for APP and solution integration
The M1 MDT includes a ready-to-use Digitax SDK, designed to simplify the integration of advanced automotive systems and third-party applications.
Key benefits:
Seamless connection with CAN Bus, I/O controls, and external modules
Fast development of custom fleet and dispatching applications
Full technical support from Digitax during integration and testing
With its open architecture, the SDK allows developers and system integrators to create tailored solutions that ensure compatibility, scalability, and reliable performance across Digitax platforms.
Customizable User Interface
The M1 MDT features a 4.3-inch 16:9 TFT display (480×272), providing a bright, responsive interface for professional fleet applications.
The integrated touchscreen controller and nine LED-backlit hardware buttons enable fast and reliable interaction, while preventing touchscreen wear during intensive use.
The ambient light sensor automatically adjusts display brightness for optimal visibility in any lighting condition — day or night.
A programmable smart power button adds flexibility and control, allowing operators to:
Press briefly to boot from the system disk
Long press to boot from the microSD card
Long press (safe mode) to shut down Windows CE safely
It can also be disabled or configured to activate Ghost Mode, keeping the system active while appearing off — ideal for discreet operations or energy saving.

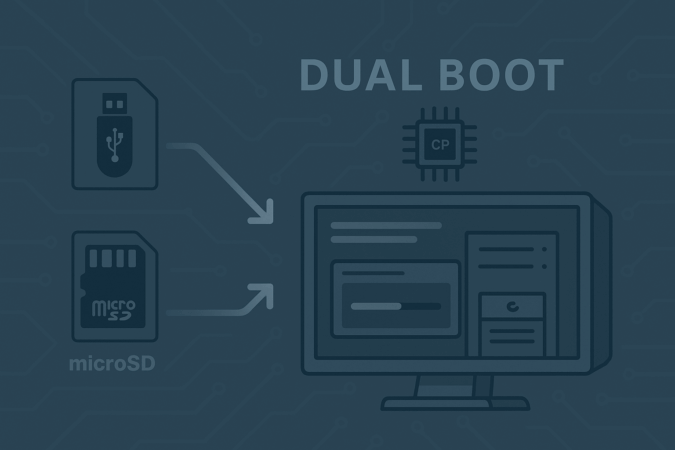

Dual boot function
The Dual Boot Function allows the M1 MDT to restore or update the entire system at any time — from user applications to the operating system and CPU firmware.
The device can boot from two independent drives:
Flash Disk — used for applications and operational data
microSD card — dedicated to large file storage (maps, images, videos, logs) and system recovery or initialization
This flexible architecture ensures safe updates, quick maintenance, and reliable performance even in demanding fleet operations.
Stealth Mode
Stealth Mode allows the M1 MDT to remain fully operational while the display is turned off, ideal for discreet monitoring or energy-saving operation.
Main functions:
Remote vehicle control: The control center can remotely activate the device, even with the screen off, to check GPS position, record ambient audio, or retrieve operational data.
Ghost Mode: When the power button is pressed, the device can enter Stealth Mode instead of shutting down, maintaining data transmission with minimal power consumption.
Alarm management: In case of an alarm, the system can start in Stealth Mode, automatically sending alerts, GPS location, screenshots, or audio to the control center — without drawing attention.
This feature ensures continuous communication, remote security control, and discreet operations in all fleet environments.

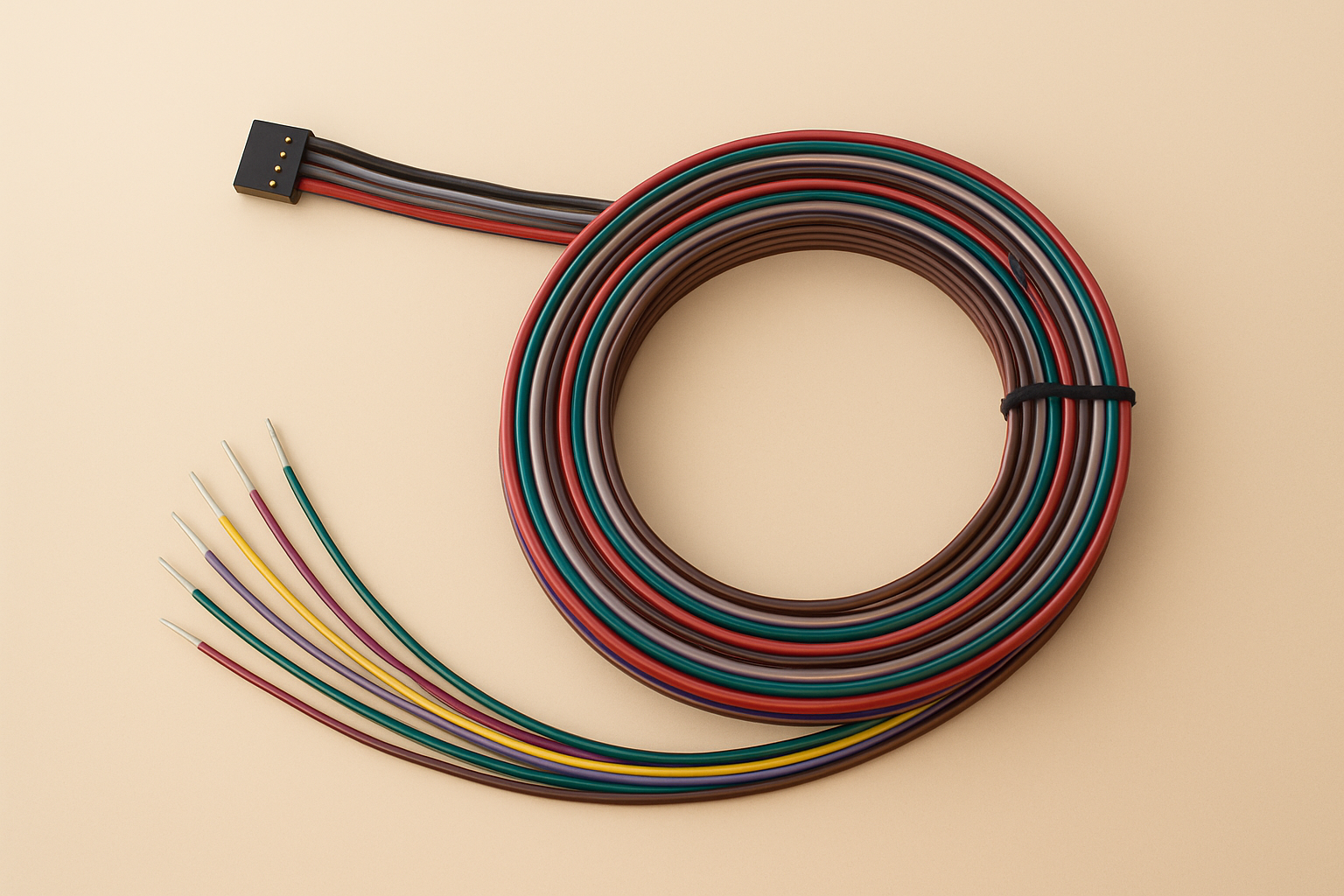

Connectivity
The M1 MDT provides a wide range of communication channels to ensure seamless integration with vehicle systems and external equipment.
Main interfaces:
2 high-speed USB 2.0 Hosts and 1 USB OTG port for data transfer and peripheral connection
Up to 4 RS232 serial ports for direct communication with on-board devices
Programmable digital inputs and outputs for controlling external components and reading signals from sensors or auxiliary systems
This flexible interface architecture enables easy integration, data synchronization, and real-time connectivity across the entire fleet.
Easy to Install
M1 MDT is a product designed to be installed above the rearview mirror, ensuring installation without compromising the aesthetics of the car. Extremely durable and robust, it is designed to be extremely reliable in all professional applications.
Certified for Professional Use
M1 MDT is fully certified for the R10 regulation and the R21 OIML regulation, as well as the European MID certification for use as a Taximeter and MDT in the same device.
TECHNICAL SPECIFICATIONS
MDT SECTION | |
Dimensions | Width: 28,5 cm Height: 9 cm Depth: 2,7 cm |
Weight | Gr. 450 ca. |
Displays | Viewing area 4.3” diagonal WQVGA 480x272 Resolution Colour TFT LED Display with 256,000 Colours Display clearly viewable with 300 cd/m2 Ambient Light Sensor with 32 Steps Automatic Regolation |
Touchscreen | Full Automotive Rugged Touchscreen with confi gurable touch areas Extended Temperature Range Pencil / Finger Type |
CPUs | Primary CPU Samsung ARM 400MHz Secondary CPU M16 for Automotive Intensive Tasks |
RAM Memory | 128MB RAM Memory |
Storage Memory | 128MB capacity of Internal Flash Memory microSD HC (High Capacity compaƟ ble) socket |
Modem | Option 1: Class 33 4 Bands GSM/GPRS/EDGE: 850/900/1800/1900 Mhz, 5 Bands MTS/HSPA: 800/850/AWS1700/1900/2011 Mhz Option 2: GSM / GPRS Class 10 Modem can be powered on when the terminal is off . Wake-up on ring programmable features Warm reset and cold reset (dedicated electronic circuit) available through API calls 2 Hardware RS232 Serial Ports available on the modem (Hardware MUX) allow both RAS and AT command from user applications 2 Sim Card slots with Software switcher available through API calls Support international standard protocol (ETSI AT command set) Supports RAS (Remote Access Service) dialup function GPS / GPRS Rugged Combo antenna (option) |
USB Ports | 2 USB Host (with USB Support for Mouse and Keyboard) 1 USB Device (in case of use the number of Host will be 1) |
Hardware Keys | 5 Lighted taximeter keys |
Power on key | 1 Power On/Off button |
Serial Ports | 2 External RS232 Serial Ports 2 RS232 Serial Ports available on embedded meter to connect 2G IU, Printer and Smart Roof sign (Option) |
I/O ports connection | 5 Power Taximeter Output Ports Ignition input |
Alarm and Security | Stealth Mode Controller (system ON display, audio and lightings off ) |
Stealth Display Feature | Fully Programmable Stealth display mode, Screen saver mode and sleeping mode by: - Power Button - API Enable Switching Off LCD without powering down MDT unit. |
Multimedia | Speaker and Microphone Supports wave speaker volume control API to be provided Playback wave and speech fi les |
Boot | Dual Boot available from Flash Disk and microSDHC Card Boot Time < 11 sec Customizable Boot Up Splash Screen with End-User Logo |
Soft /Hard Reset | Soft Reset available by API calls Hard Reset available by microSDHC Card (Factory default) |
Safe Windows shutdown procedure | Preshutdown notification Disk Activity Signal Control External UPS (option) |
Operating System | Windows CE .NET 6.0 with ATL, MFC, .NET Compact Framework 3.5 and Digitax Framework |
Development Tools | AcƟ veSync 4.5 (last version available) and USB debugging with AcƟ veSync support Sample code for SDK in C++ Compact Framework 3.5 supported Digitax Framework (Digitax Libraries): GPS, GPRS, I/O, Odometer, Taximeter, Hardware Keys, WatchDog, OTA, Windows Status, Stealth Mode Controller, Logs, Light Dimmer, Hardware Identificayion, Splash Screen, Alarm, Printer 3 Card Reader and Windows Status Serial port driver and test tools Digital I/O driver, API (DLL) and test tool Read/Write Windows CE registry application and API to Supports permanent saving of system seƫ ngs into registry Software controllable Warm Restart and test tool GPRS modem driver and test tool GPS driver and test tool Speaker and MIC test tool, wave playback and voice recorder Contactless / NFC reader driver and test tool Backlight control API and test tools Dialup network GSM phone dialer Support network protocol TCP/UDP, IP, PPP Virtual keypad Text fi le editor Explorer |
Text-To-Speech | Support 3rd party Native Text-To-Speech |
Software Navigation | Support 3rd party map application and navigation software with SDK |
System diagnostic tools | On Field Test (OFT) OnBoard Diagnostic UƟ lities (option), with Customizable CheckList to make tests of GPS Fix, GPS Antenna, GPRS Connectivity and Base Station Signal Quality, Odometer, Ignition, Panic Button, TouchScreen calibration, Hardware Keys, Ambient Light Sensor, Device version, OS Version, AITP Version, Taximeter, UPS and Battery Status, Roof Light, Navigation Software. All On Field Tests and enrolling features can be used during first installation and swap of devices. |
OS Image Loader | Over The Air (OTA) OS image loader or microSDHC Card Image Loader |
System Update Fleet Management | Professional OTA (Over The Air) CLIENT allows the update of the whole Operating System and all the CPUs Firmware (option). Professional OTA (Over The Air) SERVER with vehicles enrolling, group management and selective update, remote logging. Web based user interface (option) |
Wireless Connections | National Semiconductor LMX9838 Bluetooth (option) Complete Bluetooth 2.0 Stack including |
Taximeter | Embedded Hardware Taximeter Full Firmware and TARIF OTA Programmable |
Power Supply | 8 - 32 V with Surge Protector |
Battery | External UPS Battery Package, Standard Battery Pack 1 hour (option) |
Mounting | All the External Connectors, Accessible slots (such as SIM Card, microSDHC, USB, etc.) and Screws are Sealed |
Operating Temperature | -20°C to 70°C |
Humidity | Humidity up to 95% non-condensing |
Vibration | Vibration Sine wave, 10 ~ 500 ~ 10Hz, 1.5G, 0.37oct/min 3 axis, 1hour/ axis |
Dust Ingress Protection | All connectors covers sealed, no open holes |
Dimension | 285 mm x 90 mm x 27 mm (W x H x D) |
Weight | 450 g |
TAXIMETER SECTION | |
Displays | Fare counter: 6 Digits Red High-Luminosity Led Extra counter: 5 Digits Red High-Luminosity Led Illuminated Front Text 1 Digit tariff index |
Power Supply | From 8,5 to 16 Volts |
Temperature | From -15 to 70 °C |
Relative Humidity | 95% |
Mechanical Strenght | 3g |
Distance Unit | From 10 cm. to 6553 meters Step 10 cm |
Waiting Time Unit | From 0,1 sec. to 6553 Step 0,1 sec. |
Totalizator Mode | Datafl ash 1Mb - 45 + 45 Statistic Memory - 12 x 45 Monthly Statistic - 50 x 45 Statistics for each Driver |
Tariff Structure | 63 Smart and fully indipendent Tariff s +8 Night Tariff s +8 Holiday Tariff s +4 Autofare Tariff s +4 Autodistance Tariff s |
Tariff Choice | Manual Radio Automatic at pre-programmed: - Distance(s) - Time(s) - Date(s) - Fare(s) - Amount(s) |
Tariff Program Change | Manual by Key Via Radio By Programmer By Chip Card By Infrared Programmer |
Peripheral Connections | Printer Magnetic Card Reader Chip Card Reader/Writer Infrared Passenger Sensor Mobile Data Terminal Modem Cellular Phone |
Communications Ports | Internal COM1 and COM2 RS232 +/- 12 Volts STD 4 Input/Output TTL level |
Communications Protocols | GMSI Mobilstar RomaNet Telecom It. (Upgradable) |
Operative Firmware | Upgradable fi rmware on Flash |
Transducer | Mechanical Hall Eff ect or Internal adapter for electronic speedometer up to 100.000 l/km |
Power Outputs | 1 Roof Light 25 Watt s 4 Programmable power outputs 5 Watts |
MDT SECTION | |
Dimensions | Width: 28,5 cm Height: 9 cm Depth: 2,7 cm |
Weight | Gr. 450 ca. |
Displays | Viewing area 4.3” diagonal WQVGA 480x272 Resolution Colour TFT LED Display with 256,000 Colours Display clearly viewable with 300 cd/m2 Ambient Light Sensor with 32 Steps Automatic Regolation |
Touchscreen | Full Automotive Rugged Touchscreen with confi gurable touch areas Extended Temperature Range Pencil / Finger Type |
CPUs | Primary CPU Samsung ARM 400MHz Secondary CPU M16 for Automotive Intensive Tasks |
RAM Memory | 128MB RAM Memory |
Storage Memory | 128MB capacity of Internal Flash Memory microSD HC (High Capacity compaƟ ble) socket |
Modem | Option 1: Class 33 4 Bands GSM/GPRS/EDGE: 850/900/1800/1900 Mhz, 5 Bands MTS/HSPA: 800/850/AWS1700/1900/2011 Mhz Option 2: GSM / GPRS Class 10 Modem can be powered on when the terminal is off . Wake-up on ring programmable features Warm reset and cold reset (dedicated electronic circuit) available through API calls 2 Hardware RS232 Serial Ports available on the modem (Hardware MUX) allow both RAS and AT command from user applications 2 Sim Card slots with Software switcher available through API calls Support international standard protocol (ETSI AT command set) Supports RAS (Remote Access Service) dialup function GPS / GPRS Rugged Combo antenna (option) |
USB Ports | 2 USB Host (with USB Support for Mouse and Keyboard) 1 USB Device (in case of use the number of Host will be 1) |
Hardware Keys | 5 Lighted taximeter keys |
Power on key | 1 Power On/Off button |
Serial Ports | 2 External RS232 Serial Ports 2 RS232 Serial Ports available on embedded meter to connect 2G IU, Printer and Smart Roof sign (Option) |
I/O ports connection | 5 Power Taximeter Output Ports Ignition input |
Alarm and Security | Stealth Mode Controller (system ON display, audio and lightings off ) |
Stealth Display Feature | Fully Programmable Stealth display mode, Screen saver mode and sleeping mode by: - Power Button - API Enable Switching Off LCD without powering down MDT unit. |
Multimedia | Speaker and Microphone Supports wave speaker volume control API to be provided Playback wave and speech fi les |
Boot | Dual Boot available from Flash Disk and microSDHC Card Boot Time < 11 sec Customizable Boot Up Splash Screen with End-User Logo |
Soft /Hard Reset | Soft Reset available by API calls Hard Reset available by microSDHC Card (Factory default) |
Safe Windows shutdown procedure | Preshutdown notification Disk Activity Signal Control External UPS (option) |
Operating System | Windows CE .NET 6.0 with ATL, MFC, .NET Compact Framework 3.5 and Digitax Framework |
Development Tools | AcƟ veSync 4.5 (last version available) and USB debugging with AcƟ veSync support Sample code for SDK in C++ Compact Framework 3.5 supported Digitax Framework (Digitax Libraries): GPS, GPRS, I/O, Odometer, Taximeter, Hardware Keys, WatchDog, OTA, Windows Status, Stealth Mode Controller, Logs, Light Dimmer, Hardware Identificayion, Splash Screen, Alarm, Printer 3 Card Reader and Windows Status Serial port driver and test tools Digital I/O driver, API (DLL) and test tool Read/Write Windows CE registry application and API to Supports permanent saving of system seƫ ngs into registry Software controllable Warm Restart and test tool GPRS modem driver and test tool GPS driver and test tool Speaker and MIC test tool, wave playback and voice recorder Contactless / NFC reader driver and test tool Backlight control API and test tools Dialup network GSM phone dialer Support network protocol TCP/UDP, IP, PPP Virtual keypad Text fi le editor Explorer |
Text-To-Speech | Support 3rd party Native Text-To-Speech |
Software Navigation | Support 3rd party map application and navigation software with SDK |
System diagnostic tools | On Field Test (OFT) OnBoard Diagnostic UƟ lities (option), with Customizable CheckList to make tests of GPS Fix, GPS Antenna, GPRS Connectivity and Base Station Signal Quality, Odometer, Ignition, Panic Button, TouchScreen calibration, Hardware Keys, Ambient Light Sensor, Device version, OS Version, AITP Version, Taximeter, UPS and Battery Status, Roof Light, Navigation Software. All On Field Tests and enrolling features can be used during first installation and swap of devices. |
OS Image Loader | Over The Air (OTA) OS image loader or microSDHC Card Image Loader |
System Update Fleet Management | Professional OTA (Over The Air) CLIENT allows the update of the whole Operating System and all the CPUs Firmware (option). Professional OTA (Over The Air) SERVER with vehicles enrolling, group management and selective update, remote logging. Web based user interface (option) |
Wireless Connections | National Semiconductor LMX9838 Bluetooth (option) Complete Bluetooth 2.0 Stack including |
Taximeter | Embedded Hardware Taximeter Full Firmware and TARIF OTA Programmable |
Power Supply | 8 - 32 V with Surge Protector |
Battery | External UPS Battery Package, Standard Battery Pack 1 hour (option) |
Mounting | All the External Connectors, Accessible slots (such as SIM Card, microSDHC, USB, etc.) and Screws are Sealed |
Operating Temperature | -20°C to 70°C |
Humidity | Humidity up to 95% non-condensing |
Vibration | Vibration Sine wave, 10 ~ 500 ~ 10Hz, 1.5G, 0.37oct/min 3 axis, 1hour/ axis |
Dust Ingress Protection | All connectors covers sealed, no open holes |
Dimension | 285 mm x 90 mm x 27 mm (W x H x D) |
Weight | 450 g |
TAXIMETER SECTION | |
Displays | Fare counter: 6 Digits Red High-Luminosity Led Extra counter: 5 Digits Red High-Luminosity Led Illuminated Front Text 1 Digit tariff index |
Power Supply | From 8,5 to 16 Volts |
Temperature | From -15 to 70 °C |
Relative Humidity | 95% |
Mechanical Strenght | 3g |
Distance Unit | From 10 cm. to 6553 meters Step 10 cm |
Waiting Time Unit | From 0,1 sec. to 6553 Step 0,1 sec. |
Totalizator Mode | Datafl ash 1Mb - 45 + 45 Statistic Memory - 12 x 45 Monthly Statistic - 50 x 45 Statistics for each Driver |
Tariff Structure | 63 Smart and fully indipendent Tariff s +8 Night Tariff s +8 Holiday Tariff s +4 Autofare Tariff s +4 Autodistance Tariff s |
Tariff Choice | Manual Radio Automatic at pre-programmed: - Distance(s) - Time(s) - Date(s) - Fare(s) - Amount(s) |
Tariff Program Change | Manual by Key Via Radio By Programmer By Chip Card By Infrared Programmer |
Peripheral Connections | Printer Magnetic Card Reader Chip Card Reader/Writer Infrared Passenger Sensor Mobile Data Terminal Modem Cellular Phone |
Communications Ports | Internal COM1 and COM2 RS232 +/- 12 Volts STD 4 Input/Output TTL level |
Communications Protocols | GMSI Mobilstar RomaNet Telecom It. (Upgradable) |
Operative Firmware | Upgradable fi rmware on Flash |
Transducer | Mechanical Hall Eff ect or Internal adapter for electronic speedometer up to 100.000 l/km |
Power Outputs | 1 Roof Light 25 Watt s 4 Programmable power outputs 5 Watts |
FAQ
The M1 MDT is a driver computer with integrated certified taximeter, designed for fleet management, ride dispatching, and public transport.
Its compact mirror-mounted design eliminates the need for additional on-board devices.
The M1 MDT runs on Windows CE, ensuring stability, compatibility, and reliable performance for professional fleet software.
Yes. It includes a GPRS modem for real-time communication and a U-Blox 6 GPS receiver (50 channels) compatible with GALILEO for precise vehicle tracking.
Learn more about Digitax Device Track
Absolutely. Through the Digitax SDK, developers can integrate CAN Bus, I/O controls, and external peripherals to build custom fleet applications.
The M1 MDT features a Samsung ARM main processor and an AITP automotive processor.
This configuration ensures efficient performance, remote updates, and autonomous power management.
The terminal can start from two drives — the Flash Disk for applications and the microSD for data or recovery.
This allows safe updates and fast system restoration when needed.
Stealth Mode lets the device operate while the display remains off, ideal for discreet monitoring, energy saving, or security alarms.
It can send GPS data, screenshots, or audio to the control center without drawing attention.
Yes. It includes an integrated certified taximeter, making it ideal for taxis and public transport fleets that require compliance and compact installation.
The M1 MDT includes 2 USB 2.0 Hosts, 1 USB OTG port, and up to 4 RS232 serial ports, plus digital I/O for external sensors and devices.
Yes. Digitax offers technical assistance for developers and system integrators using the Digitax SDK, ensuring smooth and reliable implementation.
Discover more about Digitax M1 MDT
Explore how Digitax technology brings reliability, performance, and seamless integration to your fleet operations.
CONTACT US
