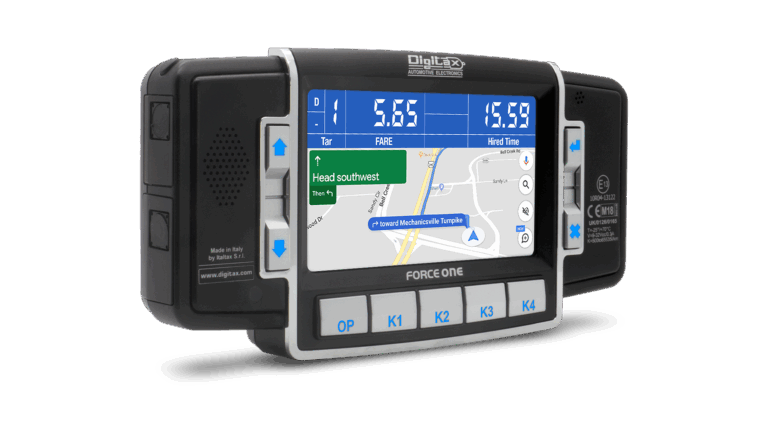

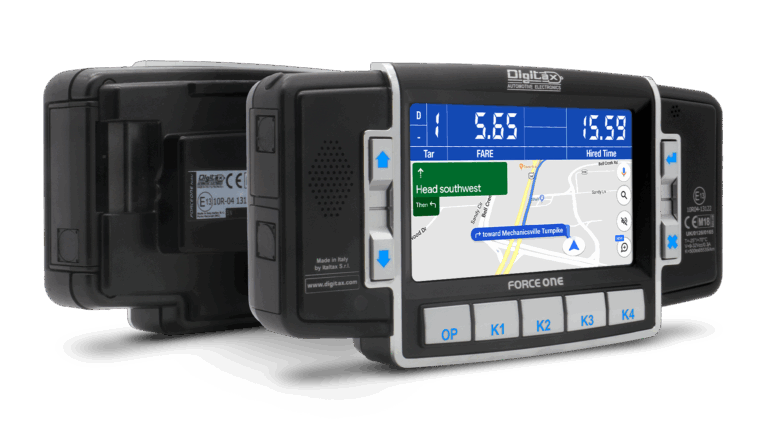

The Force One Navigator is a compact and versatile terminal designed for professional fleet management.
It integrates real-time GPS tracking, vehicle monitoring, and asset management, with continuous data transmission to the control center.
It can also host a MID-certified taximeter, ideal for public transport and taxi fleets, saving space and simplifying installation.
Equipped with a 5-inch touchscreen display, the device offers an intuitive and customizable interface, powered by Windows CE for reliability and software compatibility.
With its USB, serial, and digital I/O interfaces, the Force One Navigator connects easily to external accessories and sensors.
The integrated GPS module ensures precise route tracking and optimized vehicle operations.
Compact, rugged, and multifunctional, it’s the perfect solution for fleets, dispatching, monitoring, and data-driven management.
- Windows CE Operating System
- Built-in GPS
- Modem 3G
- EU MID + R10 + R21 certification
- 4 RS2322 Serial Ports
- 2 Digital Input/Output I/O
- 5 Power Outputs
- 1 Passenger Sensor Input
- 1 Input for Panic Button
- 1 Input for Odometer
- 1 Input for Engine Start
- Digitax SDK for Development
Download Technical Data Sheet
Dual CPU
The Force One Navigator features a dual-processor design that separates computing and automotive control tasks for maximum stability and efficiency.
Main CPU
Samsung ARM 400 MHz processor
Optimized ARM architecture for efficient performance
Low power consumption for continuous operation
Built-in graphics support for smooth interface performance
Secondary CPU (AITP — Automotive Intensive Task Processor)
Handles power management and safe shutdown
Calculates speed, distance, and wheel pulses
Supports Wake-Up on Ring for remote activation
Manages Over-the-Air (OTA) firmware and software updates
Always active, it can switch the terminal and peripherals on/off automatically
This architecture guarantees high reliability, remote control capability, and optimized energy use — ideal for professional fleet operations.
Ideal for fleet management and job distribution
The Force One Navigator is a state-of-the-art all-in-one terminal for fleet management and job dispatching, combining connectivity, GPS tracking, and automation in a single compact solution.
Key Features:
GPRS modem for stable, high-reliability communication with the operations center
U-Blox 6 GPS receiver (50 channels) for accurate vehicle positioning, compatible with the GALILEO system
Independent module control: GPS and GPRS can be activated or deactivated separately from the Windows CE system
Hardware MUX port for sending AT commands while connected via GPRS — allows connection checks, signal diagnostics, and modem statistics in real time
AITP processor manages all communication and location functions, even when the main system is off — handling both power and data exchange autonomously
Integration with the Digitax Device Track platform for full fleet supervision
Together, these technologies ensure continuous fleet monitoring, efficient communication, and complete control over vehicle operations.
Digitax SDK for APP and solution integration
The Force One Navigator includes a ready-to-use Digitax SDK, designed to simplify the integration of advanced automotive systems and external applications.
Key benefits:
Easy connection with CAN Bus, I/O controls, and custom peripherals
Rapid development of professional fleet applications
Full technical support from Digitax during integration and testing
This open architecture allows developers and system integrators to create tailored solutions, ensuring full compatibility and reliable performance across Digitax platforms.
Customizable User Interface
The Force One Navigator features a 4.3-inch 16:9 TFT display (480×272), offering a clear, responsive interface for professional applications.
The integrated touchscreen controller and nine LED-backlit hardware buttons enable quick, reliable control — reducing touchscreen wear during intensive use.
The ambient light sensor automatically adjusts brightness for optimal visibility in any condition, ensuring comfort for the operator day or night.
A programmable smart power button adds flexibility and control, allowing you to:
press briefly to boot from the system disk
long press to boot from the microSD card
long press (safe mode) to shut down the system safely
It can also be disabled or configured to activate Ghost Mode, simulating a shutdown while keeping essential functions active.
Dual boot function
The Dual Boot Function allows you to restore or update the entire system at any time, from user applications to the operating system and CPU firmware.
The terminal can boot from two different drives:
Flash Disk — used for applications and operational data
microSD card — dedicated to large data storage (maps, images, logs, videos) or system recovery and initialization
This configuration ensures maximum reliability, simplifying maintenance, updates, and field diagnostics.
Stealth Mode
Stealth Mode keeps the system fully operational while the display remains off.
It is designed for security, monitoring, and energy-saving scenarios where silent operation is required.
Main functions:
Driver monitoring:
The control center can remotely wake up the device, even when the screen is off, to check vehicle location, listen to internal audio, or access diagnostic data.Ghost Mode:
When the power button is pressed, the system can enter Stealth Mode instead of shutting down.
This keeps it active in the background, reducing power use while remaining ready for emergency actions.Alarm management:
When the system is off, pressing the alarm button can trigger a stealth startup.
During this hidden start, the terminal can automatically send alerts, GPS data, screenshots, or audio to the operations center.
In every mode, Stealth Mode ensures silent operation, remote monitoring, and enhanced fleet security.
Reliable, Long-lasting and Compact
Force One Nav is an extremely durable and robust product. Designed to be extremely reliable in all professional applications.
Certified for Professional Use
Force One Nav is fully certified for R10 and R21 OIML regulations, as well as the European MID certification for use as a Taximeter and MDT in the same device.
TECHNICAL SPECIFICATIONS
Display | Viewing area 4.3” diagonal WQVGA 480x272 Resolution Colour TFT LED Display with 256,000 Colours Display clearly viewable with 300 cd/m2 Ambient Light Sensor with 32 Steps Automatic Regolation |
Touchscreen | Full Automotive Rugged Touchscreen with confi gurable touch areas. Extended Temperature Range Pencil / Finger Type |
CPUs | Primary CPU Samsung ARM 400MHz Secondary CPU M16 for Automotive Intensive Tasks |
Ram Memory | 128MB RAM Memory |
Storage Memory | 128MB capacity of Internal Flash Memory microSD HC (High Capacity compatible) socket |
GPRS Modem | GSM / GPRS Class 10 Modem can be powered on when the terminal is off. Wake-up on ring programmable features Warm reset and cold reset (dedicated electronic circuit) available through API calls 2 Hardware RS232 Serial Ports available on the modem (Hardware MUX) allow both RAS and AT command from user applications 2 Sim Card slots with Software switcher available through API calls Support international standard protocol (ETSI AT command set) Supports RAS (Remote Access Service) dialup function GPS / GPRS Rugged Combo antenna (option) |
GPS Receiver | Ublox 6 SuperSense Technology and Indoor Navigation, new generation GPS chipsets with improved precision and fast acquisition of position fix on start up and sleep mode 50 Channels, over 2 Million correlators, GALILEO Compatible Antenna Monitor (Disconnection and Short Circuit Detection / Protection) - Hot starts: < 1 s - Warm starts: 29 s - Cold starts: 29 s Supports international NMEA standard format and proprietary UBX Binary protocol Messages interval up to 5 Hz Frequency Warm reset and cold reset (dedicated electronic circuit) available through API calls Assisted GPS (A-GPS) available GPS / GPRS Rugged Combo antenna (option) |
USB Ports | 2 USB Host (with USB Support for Mouse and Keyboard) 1 USB Device (in case of use the number of Host will be 1) |
Hardware Keys | 9 Lighted and Software programmable Hardware Buttons |
Power on key | 5 Lighted taximeter keys |
Power on key | 1 Power On/Off button |
Serial Ports | 2 Internal RS232 Serial Ports 8 RS232 Serial Ports Available through External DerivBox (option) 2 RS232 Serial Ports available on embedded meter to connect 2G IU, Printer and Smart Roof sign (Option) |
I/O ports connection | 5 Power Output Ports Dedicated Ignition input (Option) |
Alarm and Security | Stealth Mode Controller (system ON display, audio and lightings off ) |
Stealth Display Feature | Fully Programmable Stealth display mode, Screen saver mode and sleeping mode by: - Power Button - API Enable Switching Off LCD without powering down MDT unit. |
Multimedia | Speaker and Microphone Supports wave speaker volume control API to be provided Playback wave and speech files |
Boot | Dual Boot available from Flash Disk and microSDHC Card Boot Time < 11 sec Customizable Boot Up Splash Screen with End-User Logo |
Soft /Hard Reset | SoŌ Reset available trought HW switch SoŌ Reset available by API calls Hard Reset available by microSDHC Card (Factory default) |
Safe Windows shutdown procedure | Preshutdown notification Disk Activity Signal Control External UPS (option) |
Operating System | Windows CE .NET 6.0 with ATL, MFC, .NET Compact Framework 3.5 and Digitax Framework 4.1 |
Development Tools | ActiveSync 4.5 (last version available) and USB debugging with ActiveSync support Sample code for SDK in C++ Compact Framework 3.5 supported Digitax Framework 4.1 (Digitax Libraries): GPS, GPRS, I/O, Odometer, Taximeter, Hardware Keys, WatchDog, OTA, Windows Status, Stealth Mode Controller, Logs, Light Dimmer, Hardware Identification, Splash Screen, Alarm, Printer 3 Card Reader and Windows Status Serial port driver and test tools Digital I/O driver, API (DLL) and test tool Read/Write Windows CE registry application and API to Supports permanent saving of system seƫ ngs into registry Software controllable Warm Restart and test tool GPRS modem driver and test tool GPS driver and test tool Speaker and MIC test tool, wave playback and voice recorder Contactless / NFC reader driver and test tool Backlight control API and test tools Ping tool Dialup network GSM phone dialer Support network protocol TCP/UDP, IP, PPP Virtual keypad Text fi le editor Explorer |
Text-To-Speech | Support 3rd party Native Text-To-Speech |
Software Navigation | Support 3rd party map application and navigation software with SDK |
System diagnostic tools | On Field Test (OFT) OnBoard Diagnostic UƟ lities (option), with Customizable CheckList to make tests of GPS Fix, GPS Antenna, GPRS Connectivity and Base Station Signal Quality, Odometer, Ignition, Panic Button, TouchScreen calibration, Hardware Keys, Ambient Light Sensor, Device version, OS Version, AITP Version, Taximeter, UPS and Battery Status, Roof Light, Navigation Software. All On Field Tests and enrolling features can be used during first installation and swap of devices. |
OS Image Loader | Over The Air (OTA) OS image loader or microSDHC Card Image Loader |
System Update Fleet Management | Professional OTA (Over The Air) CLIENT allows the update of the whole Operating System and all the CPUs Firmware (option). Professional OTA (Over The Air) SERVER with vehicles enrolling, group management and selective update, remote logging. Web based user interface (option) |
Wireless Connections | National Semiconductor LMX9838 Bluetooth (option) Complete Bluetooth 2.0 Stack including |
Taximeter | Embedded Hardware Taximeter Full Firmware and TARIF OTA Programmable |
Power Supply | 8 - 32 V with Surge Protector |
Battery | External UPS Battery Package, Standard Battery Pack 1 hour (option) |
Mounting | All the External Connectors, Accessible slots (such as SIM Card, microSDHC, USB, etc.) and Screws are Sealed |
Operating Temperature | -20°C to 70°C |
Humidity | Humidity up to 95% non-condensing |
Vibration | Vibration Sine wave, 10 ~ 500 ~ 10Hz, 1.5G, 0.37oct/min 3 axis, 1hour/ axis |
Dust Ingress Protection | All connectors covers sealed, no open holes |
Dimension | 185 mm x 93 mm x 25 mm (W x H x D) |
Weight | 260 g |
Display | Viewing area 4.3” diagonal WQVGA 480x272 Resolution Colour TFT LED Display with 256,000 Colours Display clearly viewable with 300 cd/m2 Ambient Light Sensor with 32 Steps Automatic Regolation |
Touchscreen | Full Automotive Rugged Touchscreen with confi gurable touch areas. Extended Temperature Range Pencil / Finger Type |
CPUs | Primary CPU Samsung ARM 400MHz Secondary CPU M16 for Automotive Intensive Tasks |
Ram Memory | 128MB RAM Memory |
Storage Memory | 128MB capacity of Internal Flash Memory microSD HC (High Capacity compatible) socket |
GPRS Modem | GSM / GPRS Class 10 Modem can be powered on when the terminal is off. Wake-up on ring programmable features Warm reset and cold reset (dedicated electronic circuit) available through API calls 2 Hardware RS232 Serial Ports available on the modem (Hardware MUX) allow both RAS and AT command from user applications 2 Sim Card slots with Software switcher available through API calls Support international standard protocol (ETSI AT command set) Supports RAS (Remote Access Service) dialup function GPS / GPRS Rugged Combo antenna (option) |
GPS Receiver | Ublox 6 SuperSense Technology and Indoor Navigation, new generation GPS chipsets with improved precision and fast acquisition of position fix on start up and sleep mode 50 Channels, over 2 Million correlators, GALILEO Compatible Antenna Monitor (Disconnection and Short Circuit Detection / Protection) - Hot starts: < 1 s - Warm starts: 29 s - Cold starts: 29 s Supports international NMEA standard format and proprietary UBX Binary protocol Messages interval up to 5 Hz Frequency Warm reset and cold reset (dedicated electronic circuit) available through API calls Assisted GPS (A-GPS) available GPS / GPRS Rugged Combo antenna (option) |
USB Ports | 2 USB Host (with USB Support for Mouse and Keyboard) 1 USB Device (in case of use the number of Host will be 1) |
Hardware Keys | 9 Lighted and Software programmable Hardware Buttons |
Power on key | 5 Lighted taximeter keys |
Power on key | 1 Power On/Off button |
Serial Ports | 2 Internal RS232 Serial Ports 8 RS232 Serial Ports Available through External DerivBox (option) 2 RS232 Serial Ports available on embedded meter to connect 2G IU, Printer and Smart Roof sign (Option) |
I/O ports connection | 5 Power Output Ports Dedicated Ignition input (Option) |
Alarm and Security | Stealth Mode Controller (system ON display, audio and lightings off ) |
Stealth Display Feature | Fully Programmable Stealth display mode, Screen saver mode and sleeping mode by: - Power Button - API Enable Switching Off LCD without powering down MDT unit. |
Multimedia | Speaker and Microphone Supports wave speaker volume control API to be provided Playback wave and speech files |
Boot | Dual Boot available from Flash Disk and microSDHC Card Boot Time < 11 sec Customizable Boot Up Splash Screen with End-User Logo |
Soft /Hard Reset | SoŌ Reset available trought HW switch SoŌ Reset available by API calls Hard Reset available by microSDHC Card (Factory default) |
Safe Windows shutdown procedure | Preshutdown notification Disk Activity Signal Control External UPS (option) |
Operating System | Windows CE .NET 6.0 with ATL, MFC, .NET Compact Framework 3.5 and Digitax Framework 4.1 |
Development Tools | ActiveSync 4.5 (last version available) and USB debugging with ActiveSync support Sample code for SDK in C++ Compact Framework 3.5 supported Digitax Framework 4.1 (Digitax Libraries): GPS, GPRS, I/O, Odometer, Taximeter, Hardware Keys, WatchDog, OTA, Windows Status, Stealth Mode Controller, Logs, Light Dimmer, Hardware Identification, Splash Screen, Alarm, Printer 3 Card Reader and Windows Status Serial port driver and test tools Digital I/O driver, API (DLL) and test tool Read/Write Windows CE registry application and API to Supports permanent saving of system seƫ ngs into registry Software controllable Warm Restart and test tool GPRS modem driver and test tool GPS driver and test tool Speaker and MIC test tool, wave playback and voice recorder Contactless / NFC reader driver and test tool Backlight control API and test tools Ping tool Dialup network GSM phone dialer Support network protocol TCP/UDP, IP, PPP Virtual keypad Text fi le editor Explorer |
Text-To-Speech | Support 3rd party Native Text-To-Speech |
Software Navigation | Support 3rd party map application and navigation software with SDK |
System diagnostic tools | On Field Test (OFT) OnBoard Diagnostic UƟ lities (option), with Customizable CheckList to make tests of GPS Fix, GPS Antenna, GPRS Connectivity and Base Station Signal Quality, Odometer, Ignition, Panic Button, TouchScreen calibration, Hardware Keys, Ambient Light Sensor, Device version, OS Version, AITP Version, Taximeter, UPS and Battery Status, Roof Light, Navigation Software. All On Field Tests and enrolling features can be used during first installation and swap of devices. |
OS Image Loader | Over The Air (OTA) OS image loader or microSDHC Card Image Loader |
System Update Fleet Management | Professional OTA (Over The Air) CLIENT allows the update of the whole Operating System and all the CPUs Firmware (option). Professional OTA (Over The Air) SERVER with vehicles enrolling, group management and selective update, remote logging. Web based user interface (option) |
Wireless Connections | National Semiconductor LMX9838 Bluetooth (option) Complete Bluetooth 2.0 Stack including |
Taximeter | Embedded Hardware Taximeter Full Firmware and TARIF OTA Programmable |
Power Supply | 8 - 32 V with Surge Protector |
Battery | External UPS Battery Package, Standard Battery Pack 1 hour (option) |
Mounting | All the External Connectors, Accessible slots (such as SIM Card, microSDHC, USB, etc.) and Screws are Sealed |
Operating Temperature | -20°C to 70°C |
Humidity | Humidity up to 95% non-condensing |
Vibration | Vibration Sine wave, 10 ~ 500 ~ 10Hz, 1.5G, 0.37oct/min 3 axis, 1hour/ axis |
Dust Ingress Protection | All connectors covers sealed, no open holes |
Dimension | 185 mm x 93 mm x 25 mm (W x H x D) |
Weight | 260 g |
FAQ
The Force One Navigator is a compact fleet management terminal that combines vehicle monitoring, GPS tracking, and data communication in one device.
It’s ideal for taxis, buses, and public transport fleets that need reliable dispatching and control.
The device runs on Windows CE, ensuring stability and compatibility with a wide range of professional software applications.
Yes. The integrated U-Blox 6 GPS receiver (50 channels) provides real-time vehicle positioning and is compatible with the GALILEO satellite system for enhanced accuracy.
Yes. It can host a MID-certified taximeter, making it ideal for public transport and taxi fleets while saving space and simplifying installation.
Explore the Digitax Taximeter Range — certified and connected solutions for taxis and public transport.
It uses a Samsung ARM main processor for computing and an AITP automotive processor for power, safety, and communication control.
This dual setup ensures low energy consumption and reliable operation even when the main system is off.
Stealth Mode lets the device operate while the display remains off, useful for discreet monitoring, energy saving, or emergency alerts.
It can also send GPS data, screenshots, or audio to the operations center during alarm situations.
Absolutely. The AITP processor manages communication and location even when the main system is off, ensuring uninterrupted tracking and control.
Learn more about Digitax Device Track Platform
Yes. The Digitax SDK allows developers to integrate CAN Bus, I/O controls, and external devices easily.
Digitax also provides technical support throughout the integration process.
It supports USB, serial, and digital I/O ports, plus GPRS communication for data transfer to the operations center.
Modules can be controlled independently to optimize power and performance.
Stealth Mode lets the device operate while the display remains off, useful for discreet monitoring, energy saving, or emergency alerts.
It can also send GPS data, screenshots, or audio to the operations center during alarm situations.
