Digitax’s ATOMO ETS system is a comprehensive, all-in-one onboard solution designed for public transport, bus operations, fleet management, and special-purpose vehicles.
Built on a modular, Android-based architecture, it combines a Mobile Data Terminal (MDT), smart ticket validators, and a compact printer into a unified, intelligent platform that simplifies vehicle management and passenger services.

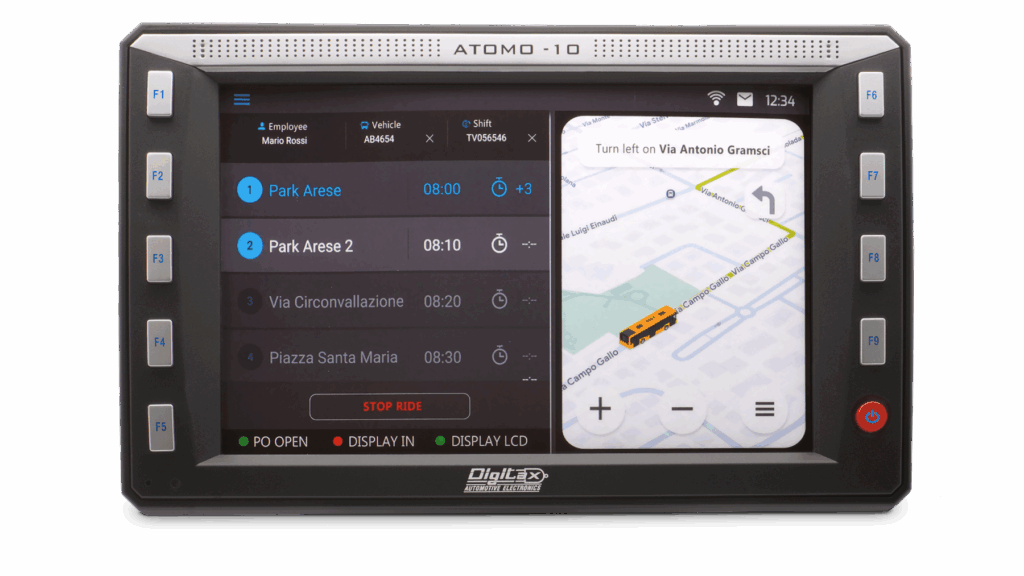

At the heart of the system is the ATOMO-10 MDT, a powerful All-in-One Driver Console powered by the Digitax Platform-On-Module architecture.
This modular design allows quick upgrades of CPU, operating system, and connectivity — ensuring long-term scalability and adaptability to evolving technologies.

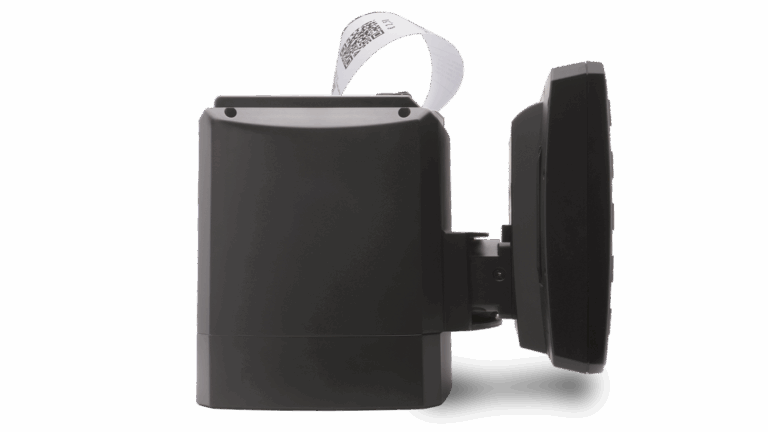

The ecosystem extends to the ATOMO 10 ETS integrated configuration, combining the MDT with ATOMO 7 Smart Ticket Validators and a printer. Together, they form a connected environment designed for modern mobility applications.
Key Highlights
- Modular design for flexible installation, configuration, and upgrades
- Full compatibility with third-party devices via standard communication protocols
- Direct control of intelligent peripherals, eliminating the need for intermediate devices
- Reduced system complexity and maintenance costs
- Real-time data, monitoring, and diagnostics for enhanced fleet efficiency
With ATOMO ETS, operators benefit from a future-proof, connected ecosystem that supports smarter, safer, and more sustainable transport operations — ensuring seamless integration, faster maintenance, and maximum fleet uptime.
- Android 9/10/14
- Cortex A53
- GPU Adreno 506/Kryo TM 619
- Octa-Core 1.8 Ghz / 2.0 Ghz
- Backup Battery
- 16:9 Display 10.1″ Nits
- 9-Axis Accelerometer
- Wifi 2.4G/5G
- Ram 2Gb-3Gb / Storage 16Gb-32Gb
- GPS
- 4G LTE
- Bluetooth 4.2 / 5.1
- Digitax SDK
Download Technical Data Sheet
AVAILABLE CONFIGURATIONS
Atomo-10 MDT
Only the Atomo 10 MDT Standalone is provided.
[CONFIGURATION 1]

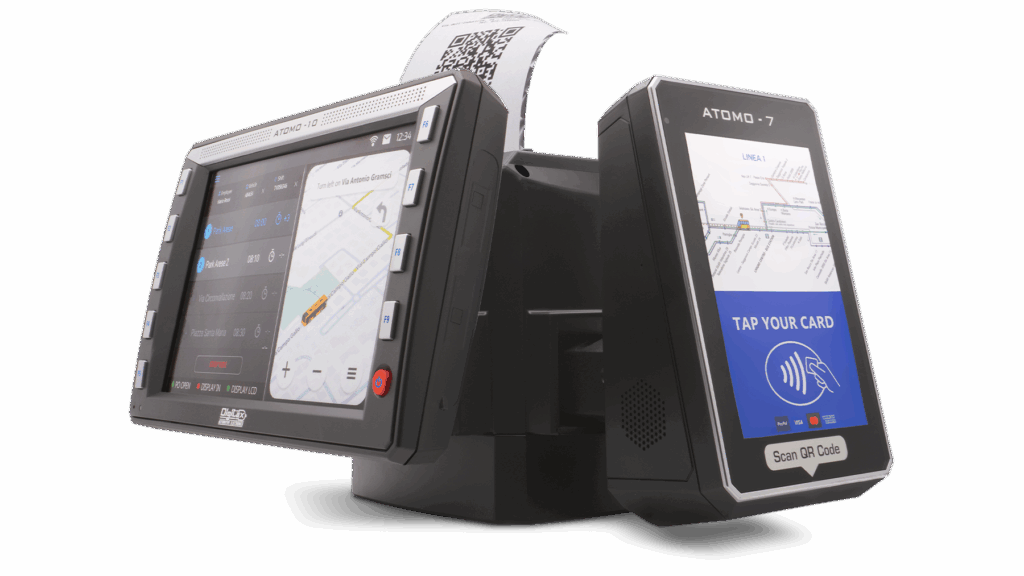

Atomo-10 ETS
They are supplied as ALL IN ONE:
Atomo 10 MDT +Atom 7 + Printer
[CONFIGURATION 2]

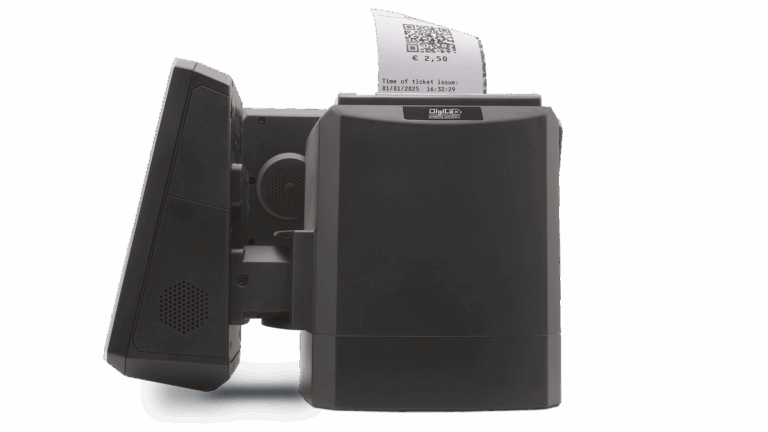

Atomo-10 MDT + Printer
Atomo 10 MDT is supplied installed on the Digitax Printer
[CONFIGURATION 3]

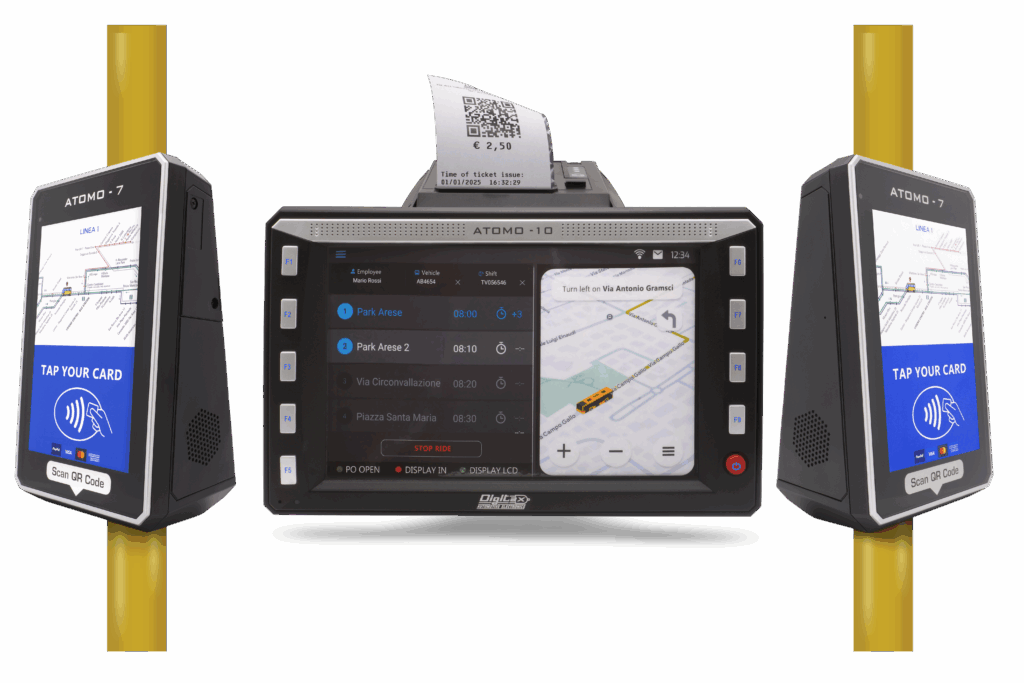

Atomo-10 MDT + Printer + Atomo 7 Ticket Remote Validators
Atomo 10 MDT is supplied installed on Printer Digitax with the possibility of 2 or more remote validators
[CONFIGURATION 4]
ATOMO 10 MDT - DIRECT INTERFACES
ATOMO 10 MDT - AVAILABLE CONFIGURATIONS

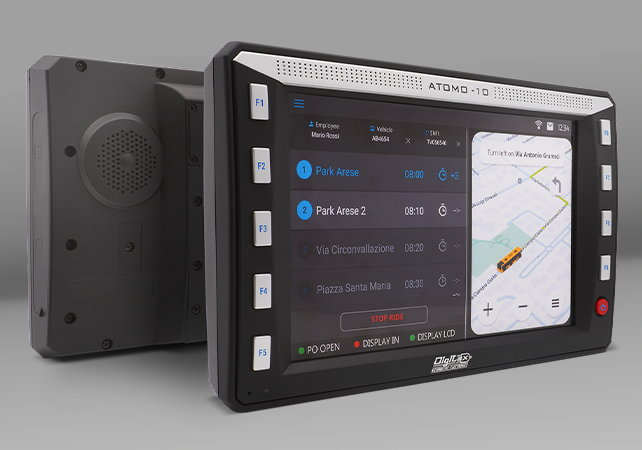

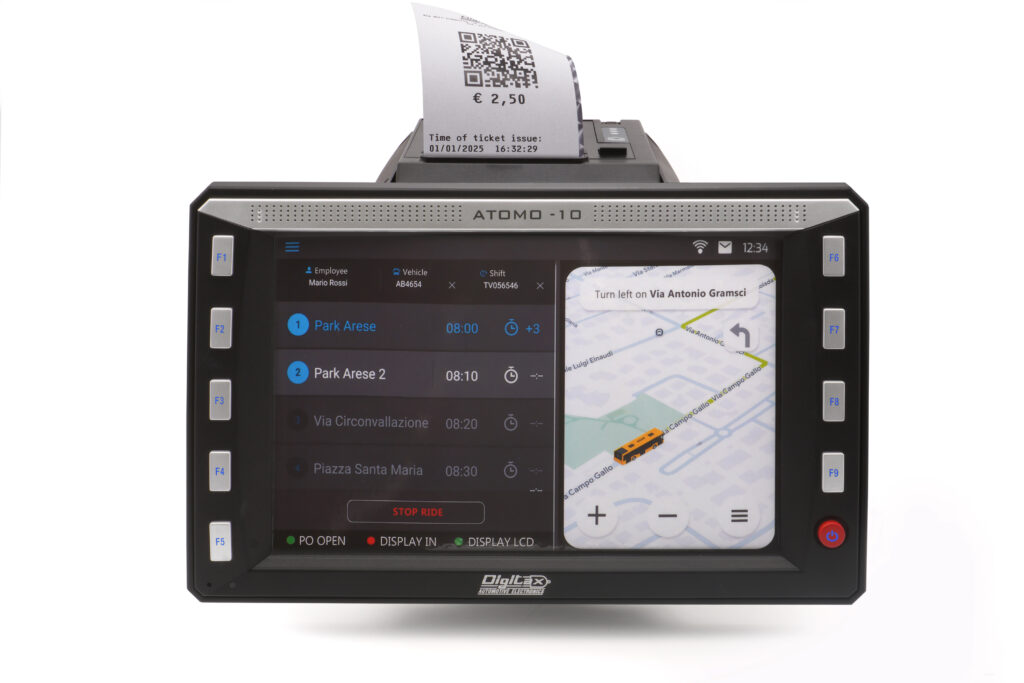

ATOMO 10 MDT, the center of the ATOMO 10 ETS system
The ATOMO 10 MDT from Digitax is a professional Android Mobile Data Terminal designed for public transport, bus operations, and fleet management.
Reliable, certified, and modular, it offers system integrators a flexible all-in-one driver console tailored to intelligent mobility needs.
Thanks to its Platform-On-Module architecture, ATOMO 10 ensures easy upgrades of CPU, operating system, and connectivity.
Compact, powerful, and future-ready, it delivers robust performance and seamless integration across any modern transport or fleet environment.

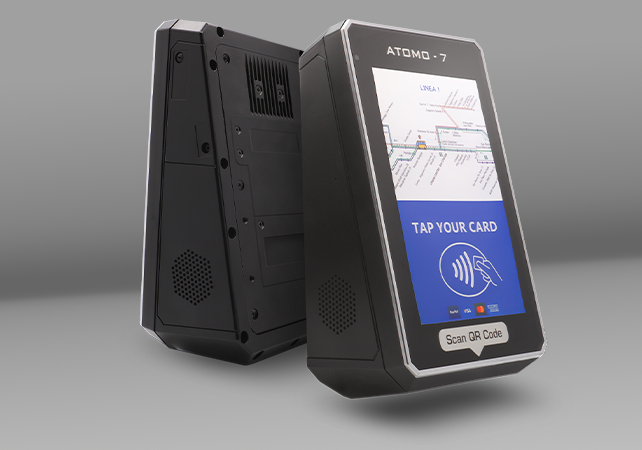

ATOMO 7, the electronic ticket validator
The Digitax ATOMO 7 Ticket Remote Validator is an Android-based device available as an all-in-one unit or integrated with the ATOMO 10 MDT and printer.
It can be customised and programmed with dedicated applications to meet specific operator requirements.
Main features:
Contactless reader with on-demand payment
NFC and QR/barcode scanner for fast, secure validation
7″ TFT colour display (1280×720) supporting animated graphics and custom layouts
Multiple external interfaces for easy integration with third-party systems
Compact and flexible, ATOMO 7 ensures seamless connectivity and adaptability for any public transport or smart mobility application.

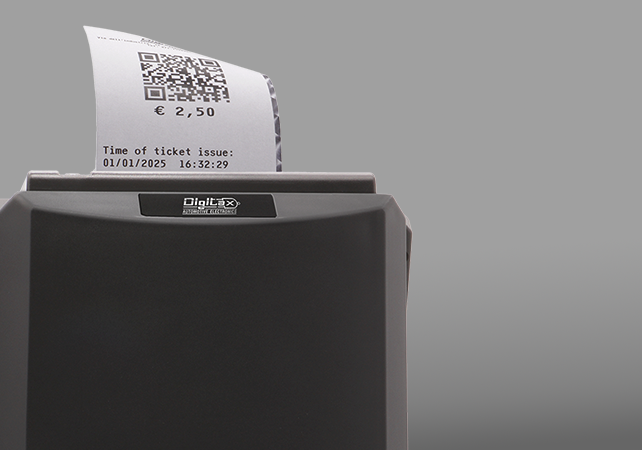

Digitax printer, solid and reliable
The Digitax printer offers all the essential features to print receipts, QR codes, and forms quickly and reliably.
Easily connectable to the ATOMO 10 Mobile Data Terminal, it is ideal for automotive and public transport applications.
Key features:
ESC/POS command support for broad system compatibility
Multiple I/O ports and external connections for fast integration
Compact, durable design ensuring consistent performance in any on-board environment
Efficient and versatile, the Digitax printer ensures seamless integration and dependable operation within the ATOMO ecosystem.
Immediate replacement of the unit in case of need

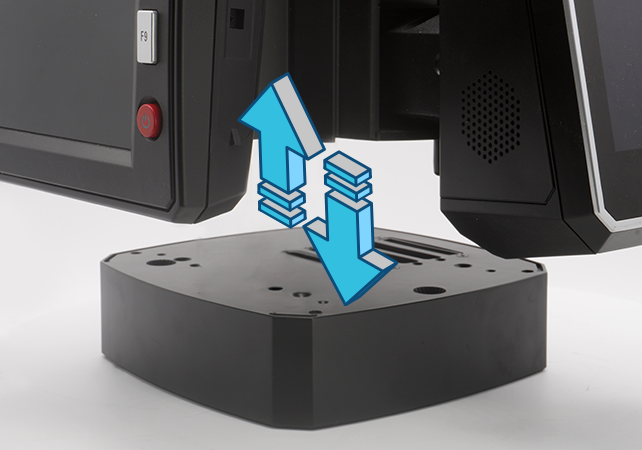

Public transport relies on efficiency and minimal downtime.
To simplify maintenance and upgrades, Digitax developed a fixed docking station for the ATOMO central unit, mounted directly on the vehicle dashboard.
Main advantages:
Quick replacement — the unit can be swapped in minutes by removing just four screws
Immediate restart — operation resumes instantly after installation
Reduced downtime and faster maintenance
This modular design ensures continuous service, easy maintenance, and maximum fleet uptime for public transport operations.
Digitax SDK for APP and solution integration
The Digitax SDK is a comprehensive suite of APIs, tools, and utilities designed to help developers and system integrators create custom automotive and telematics applications.
It offers direct access to key hardware components, including:
CAN Bus
Odometer sensors
GPS
Modem
Power management
This enables full integration between Digitax devices and professional fleet management platforms.
Digitax also provides complete technical support throughout the integration process, ensuring reliable connectivity with fleet management software and back-office systems.
Configurable and versatile
Atomo10 ETS offers the advantage of adapting to customer requests, as having various configurations and combinations of use available makes it suitable for any fleet need.
IP65 water protection
Atomo 10 ETS has IP65 protection, and is therefore protected against water infiltration. In the extreme case that the device comes into contact with water accidentally or intentionally, it is protected to operate even under these conditions.
Features Atomo-10 MDT
Features ATOMO 7 Ticket Remote Validator
TECHNICAL SPECIFICATIONS
Dimensions & Weight | 29,5cm x 18,5cm x 6 cm 1721 gr. |
CPUs (Option 1) | Fanless Device with Primary CPU Qualcomm SDM450 chipset, Octacore ARM Cortex-A53 64-bit CPU @1.8GHz. Adreno 506 GPU: OpenGL ES 3.02, OpenCL3, content security, and decreased power consumption |
CPUs (Option 2) | Fanless Device with Primary CPU Qualcomm QCM4290 Octa-core ARM Cortex 4 x Kryo 260@ 2.0 GHz + 4 x Kryo 260@ 1.8GHz |
GPU (Option 1) | Qualcomm® Adreno™ 506 graphics processing unit (GPU) with 64-bit addressing |
GPU (Option 2) | Qualcomm KryoTM 610 graphics processing unit (GPU) at 950 MHz |
Secondary Intensive Task CPU Processor (AITP) | Secondary CPU The dedicated AITP (Automotive Intensive Task Processor) supplies the functionalities required by the automotive market like power management, Safe Shutdown, Wheel Pulses Odometer, Distance and Speed calculation, Wake-Up on Ring, Over-the-Air services for software and firmware updates. The AITP is OTA programmable for remote automatic firmware and tariff upgrade and is always powered ON. It can also switch ON and OFF the device and the peripherals. |
Ram Memory | Ram Memory |
Storage Solid State Hard Disk Memory | 16GB EMMC |
External SD | Up to 256 GB for external storage |
Communication Modem 4G | LTE Cat 6 modem supporting 2 × 20 MHz carrier aggregation, with maximum download speed up to 300 Mbps. Worldwide LTE, UMTS/HSPA+ and GSM/GPRS/EDGE coverage. 2 Sim Card slots |
GPS Receiver | Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in any environment. |
Antennas | Internal GPS-WiFi-BT-LTE External GPS-WiFi-BT-LTE Rugged Combo antenna (option) |
Multimedia (Option 1) | Audio: MP3, AAC+,eAAC, AMR-NB, -WB, G.711, WMA 9/10 Pro. Video: Encode:30fps 720P (H.264), 30fps WVGA (MPEG-4/VP8). Decode:30fps 1080P (H.264/MPEG-4/VP8/H.265 DivX4/5/6), 30fps WVGA (H.263) |
Multimedia (Option 2) | Video encoding: 1080p @ 60 fps 8-bit HEVC (H.265); 1080p @ 60 fps 8-bit H.264 Video decoding: 1080p @ 60 fps 8-bit H.264; 1080p @ 60 fps 8-bit HEVC (H.265), VP9 Encoding + decoding: 1080p @ 30 fps + 1080p @ 30 fps |
Connectivity | Wi-Fi Connection2.4G/5.8G, 802.11 a/b/g/n Bluetooth class 2BT2.1+EDR/3.0/4.1 LE. / 5.1 |
Operating system (Option 1) | Operating system (Option 1) |
Operating system (Option 2) | Operating system (Option 2) |
IP protection | IP65 waterproof sealed |
Display | Ergonomic and orientable 10.1” TFT IPS Normally black Transmissive Display with 1920x1200 pixel resolution (1280x800 500 cd/m2) and 16.7M colors. Aspect Ratio 16:9. Display clearly viewable with 1000 cd/m2 or 500 cd/m2. Ambient Light Sensor with Automatic Regulation. |
Touchscreen | Capacitive Touch screen. Extended Temperature Range. IK8 |
User Interaction | Operation with capacitive touchscreen or dedicated and programmable Function Keys (10 Keys) |
USB Ports | UpTo 3 X USB Host (with USB Support for Mouse and Keyboard) Hi-Speed. 1 USB Device. |
Serial Ports | 1 External Full Modem RS232 Port. 2 External TX/RX RS232 / RS485 Port. 4 External RS232 Serial Ports (option) |
I/O ports connection | 4 Digital Inputs 3 + 5 Power Output Ports Dedicated Ignition input 2 Analog Ports input External Speakers output External Microphone input Odometer input |
Can Bus | Can Bus Interface OBD-II OBD2-FMS-SAJ1708 |
Alarm and Security | Panic Button input / Emergency Switch input Stealth Mode Controller (system ON display, audio and lightings off) |
Power on key | 1 Smart Power On/Off button |
Connectivity | Ethernet: 10/100 Mbps LAN Controller Witch 4 different switch ports |
Development Tools | Adb/Android Studio IDE with USB debugging support SDK for Android O.S. Serial port driver and test tools Digital I/O driver |
OS Image Loader | Over The Air (OTA) OS image loader or microSDHC Card Image Loader |
Power Supply | 8 - 32 V with Surge Protector |
Battery | Internal Battery Package (option) for controlled shutdown without any damage risk |
Operating Temperature | -20°C to 75°C |
Humidity | Humidity up to 95% non-condensing |
Vibration | Vibration Sine wave, 10 ~ 500 ~ 10Hz, 1.5G, 0.37oct/min 3 axis, 1hour/axis |
eSIM | Yes |
Dead Reckoning Module | Yes |
Dimensions & Weight | 22cm x 13cm x 8,5 cm 1123 gr. |
CPUs (Option 1) | Fanless Device with Primary CPU Qualcomm MSM8909 chipset, Quad-core ARM Cortex-A7 32-bit CPU @1.1GHz. Adreno 304 GPU |
CPUs (Option 2) | Fanless Device with Primary CPU Qualcomm QCM2290, Quad-core ARM Cortex-A53 64-bit CPU @ 2.0 GHz AdrenoTM 702 GPU |
GPU (Option 1) | OpenGL ES 3.02, OpenCL3, content security and reduced power consumption |
GPU (Option 2) | OpenGL ES 3.02, OpenCL3, content security and reduced power consumption |
Ram Memory (Option 1) | +2GB LPDDR3 |
Ram Memory (Option 2) | +3GB LPDDR3 |
Storage Solid State Hard Disk Memory (Option 1) | 16GB EMMC |
Storage Solid State Hard Disk Memory (Option 2) | 32GB EMMC |
Operating System (Option 1) | Android 7.1 X |
Operating System (Option 1) | Android 12/13 |
Secondary Intensive Task CPU Processor (AITP) | Secondary CPU The dedicated AITP (Automotive Intensive Task Processor) supplies the functionalities required by the automotive market like power management, Safe Shutdown, Wheel Pulses Odometer, Distance and Speed calculation, Wake-Up on Ring, Over-the-Air services for software and firmware updates. The AITP is OTA programmable for remote automatic firmware and tariff upgrade and is always powered ON. It can also switch ON and OFF the device and the peripherals. |
External SD | Up to 2T for external storage |
Communication Modem 4G | LTE Cat 4 GSM / GPRS Class 12 2 Sim Card slots Always online |
Antennas | Internal WiFi-BT-LTE External WiFi-BT-LTE Rugged Combo antenna (option) |
Multimedia | Audio: MP3, AAC+,eAAC, AMR-NB, -WB, G.711, WMA 9/10 Pro. Video: Encode:30fps 720P (H.264), 30fps WVGA (MPEG-4/VP8). Decoding:30fps 1080P (H.264/MPEG-4/VP8/H.265 DivX4/5/6), 30fps WVGA (H.263) |
Audio | 3 Watt Audio Speaker |
Connectivity | Wi-Fi Connection2.4G/5.8G, 802.11 a/b/g/n Bluetooth class 2BT2.1+EDR/3.0/4.1 LE |
Display | Viewing Area: 7" Diagonal Resolution: 1280x800 Colours: TFT LED Display with 1,67 M colors Luminosity: Display clearly viewable with 500/1000 cd/m2. |
Touchscreen | utomotive Full Rugged Pen/Finger Touchscreen. Extended Temperature Range IK9 |
Input / Output Ports | 2 Digital inputs and 2 Power Output 2 RS232 Serial External Ports (485 Optional) 1 Ignition Input to Tur ON Turn OFF Device Remotely Can Interface to connect to veichle interface (Option) |
Dimensions & Weight | 29,5cm x 18,5cm x 6 cm 1721 gr. |
CPUs (Option 1) | Fanless Device with Primary CPU Qualcomm SDM450 chipset, Octacore ARM Cortex-A53 64-bit CPU @1.8GHz. Adreno 506 GPU: OpenGL ES 3.02, OpenCL3, content security, and decreased power consumption |
CPUs (Option 2) | Fanless Device with Primary CPU Qualcomm QCM4290 Octa-core ARM Cortex 4 x Kryo 260@ 2.0 GHz + 4 x Kryo 260@ 1.8GHz |
GPU (Option 1) | Qualcomm® Adreno™ 506 graphics processing unit (GPU) with 64-bit addressing |
GPU (Option 2) | Qualcomm KryoTM 610 graphics processing unit (GPU) at 950 MHz |
Secondary Intensive Task CPU Processor (AITP) | Secondary CPU The dedicated AITP (Automotive Intensive Task Processor) supplies the functionalities required by the automotive market like power management, Safe Shutdown, Wheel Pulses Odometer, Distance and Speed calculation, Wake-Up on Ring, Over-the-Air services for software and firmware updates. The AITP is OTA programmable for remote automatic firmware and tariff upgrade and is always powered ON. It can also switch ON and OFF the device and the peripherals. |
Ram Memory | Ram Memory |
Storage Solid State Hard Disk Memory | 16GB EMMC |
External SD | Up to 256 GB for external storage |
Communication Modem 4G | LTE Cat 6 modem supporting 2 × 20 MHz carrier aggregation, with maximum download speed up to 300 Mbps. Worldwide LTE, UMTS/HSPA+ and GSM/GPRS/EDGE coverage. 2 Sim Card slots |
GPS Receiver | Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in any environment. |
Antennas | Internal GPS-WiFi-BT-LTE External GPS-WiFi-BT-LTE Rugged Combo antenna (option) |
Multimedia (Option 1) | Audio: MP3, AAC+,eAAC, AMR-NB, -WB, G.711, WMA 9/10 Pro. Video: Encode:30fps 720P (H.264), 30fps WVGA (MPEG-4/VP8). Decode:30fps 1080P (H.264/MPEG-4/VP8/H.265 DivX4/5/6), 30fps WVGA (H.263) |
Multimedia (Option 2) | Video encoding: 1080p @ 60 fps 8-bit HEVC (H.265); 1080p @ 60 fps 8-bit H.264 Video decoding: 1080p @ 60 fps 8-bit H.264; 1080p @ 60 fps 8-bit HEVC (H.265), VP9 Encoding + decoding: 1080p @ 30 fps + 1080p @ 30 fps |
Connectivity | Wi-Fi Connection2.4G/5.8G, 802.11 a/b/g/n Bluetooth class 2BT2.1+EDR/3.0/4.1 LE. / 5.1 |
Operating system (Option 1) | Operating system (Option 1) |
Operating system (Option 2) | Operating system (Option 2) |
IP protection | IP65 waterproof sealed |
Display | Ergonomic and orientable 10.1” TFT IPS Normally black Transmissive Display with 1920x1200 pixel resolution (1280x800 500 cd/m2) and 16.7M colors. Aspect Ratio 16:9. Display clearly viewable with 1000 cd/m2 or 500 cd/m2. Ambient Light Sensor with Automatic Regulation. |
Touchscreen | Capacitive Touch screen. Extended Temperature Range. IK8 |
User Interaction | Operation with capacitive touchscreen or dedicated and programmable Function Keys (10 Keys) |
USB Ports | UpTo 3 X USB Host (with USB Support for Mouse and Keyboard) Hi-Speed. 1 USB Device. |
Serial Ports | 1 External Full Modem RS232 Port. 2 External TX/RX RS232 / RS485 Port. 4 External RS232 Serial Ports (option) |
I/O ports connection | 4 Digital Inputs 3 + 5 Power Output Ports Dedicated Ignition input 2 Analog Ports input External Speakers output External Microphone input Odometer input |
Can Bus | Can Bus Interface OBD-II OBD2-FMS-SAJ1708 |
Alarm and Security | Panic Button input / Emergency Switch input Stealth Mode Controller (system ON display, audio and lightings off) |
Power on key | 1 Smart Power On/Off button |
Connectivity | Ethernet: 10/100 Mbps LAN Controller Witch 4 different switch ports |
Development Tools | Adb/Android Studio IDE with USB debugging support SDK for Android O.S. Serial port driver and test tools Digital I/O driver |
OS Image Loader | Over The Air (OTA) OS image loader or microSDHC Card Image Loader |
Power Supply | 8 - 32 V with Surge Protector |
Battery | Internal Battery Package (option) for controlled shutdown without any damage risk |
Operating Temperature | -20°C to 75°C |
Humidity | Humidity up to 95% non-condensing |
Vibration | Vibration Sine wave, 10 ~ 500 ~ 10Hz, 1.5G, 0.37oct/min 3 axis, 1hour/axis |
eSIM | Yes |
Dead Reckoning Module | Yes |
Dimensions & Weight | 22cm x 13cm x 8,5 cm 1123 gr. |
CPUs (Option 1) | Fanless Device with Primary CPU Qualcomm MSM8909 chipset, Quad-core ARM Cortex-A7 32-bit CPU @1.1GHz. Adreno 304 GPU |
CPUs (Option 2) | Fanless Device with Primary CPU Qualcomm QCM2290, Quad-core ARM Cortex-A53 64-bit CPU @ 2.0 GHz AdrenoTM 702 GPU |
GPU (Option 1) | OpenGL ES 3.02, OpenCL3, content security and reduced power consumption |
GPU (Option 2) | OpenGL ES 3.02, OpenCL3, content security and reduced power consumption |
Ram Memory (Option 1) | +2GB LPDDR3 |
Ram Memory (Option 2) | +3GB LPDDR3 |
Storage Solid State Hard Disk Memory (Option 1) | 16GB EMMC |
Storage Solid State Hard Disk Memory (Option 2) | 32GB EMMC |
Operating System (Option 1) | Android 7.1 X |
Operating System (Option 1) | Android 12/13 |
Secondary Intensive Task CPU Processor (AITP) | Secondary CPU The dedicated AITP (Automotive Intensive Task Processor) supplies the functionalities required by the automotive market like power management, Safe Shutdown, Wheel Pulses Odometer, Distance and Speed calculation, Wake-Up on Ring, Over-the-Air services for software and firmware updates. The AITP is OTA programmable for remote automatic firmware and tariff upgrade and is always powered ON. It can also switch ON and OFF the device and the peripherals. |
External SD | Up to 2T for external storage |
Communication Modem 4G | LTE Cat 4 GSM / GPRS Class 12 2 Sim Card slots Always online |
Antennas | Internal WiFi-BT-LTE External WiFi-BT-LTE Rugged Combo antenna (option) |
Multimedia | Audio: MP3, AAC+,eAAC, AMR-NB, -WB, G.711, WMA 9/10 Pro. Video: Encode:30fps 720P (H.264), 30fps WVGA (MPEG-4/VP8). Decoding:30fps 1080P (H.264/MPEG-4/VP8/H.265 DivX4/5/6), 30fps WVGA (H.263) |
Audio | 3 Watt Audio Speaker |
Connectivity | Wi-Fi Connection2.4G/5.8G, 802.11 a/b/g/n Bluetooth class 2BT2.1+EDR/3.0/4.1 LE |
Display | Viewing Area: 7" Diagonal Resolution: 1280x800 Colours: TFT LED Display with 1,67 M colors Luminosity: Display clearly viewable with 500/1000 cd/m2. |
Touchscreen | utomotive Full Rugged Pen/Finger Touchscreen. Extended Temperature Range IK9 |
Input / Output Ports | 2 Digital inputs and 2 Power Output 2 RS232 Serial External Ports (485 Optional) 1 Ignition Input to Tur ON Turn OFF Device Remotely Can Interface to connect to veichle interface (Option) |
FAQ
ATOMO ETS is a modular, all-in-one Android driver console that combines the ATOMO 10 MDT, ATOMO 7 Ticket Validator and Printer into a single connected platform.
It streamlines public transport and fleet operations, managing real-time communication, ticket validation, and data exchange between the vehicle and the control centre — all through one intelligent system.
This integrated approach simplifies daily operations and ensures maximum uptime across modern mobility fleets.
Yes — the modular architecture and the Digitax SDK make ATOMO ETS easily customizable.
Operators can develop dedicated interfaces, fare logic, and data flows to match their service requirements.
Digitax provides a full set of APIs and developer tools that allow seamless adaptation to different fleet management systems and urban transport infrastructures.
Maintenance is fast and intuitive thanks to the fixed docking station for the central unit.
Technicians can replace the MDT in minutes by removing just four screws — no need for rewiring or system re-installation.
This design drastically reduces downtime and ensures continuous vehicle operation, ideal for high-frequency public transport fleets.
ATOMO ETS supports Wi-Fi (2.4 / 5 GHz), Bluetooth 4.2 / 5.1, 4G LTE / 5G, GPS, and CAN Bus connectivity.
These standards guarantee smooth data exchange with third-party systems, ticketing back-offices, and fleet management software, ensuring complete interoperability and reliable real-time communication.
Absolutely. Digitax offers comprehensive technical support and SDK assistance to OEMs, system integrators, and transport operators worldwide.
From initial deployment to long-term maintenance, the company ensures stable integration, security compliance, and ongoing compatibility with evolving software platforms.
Learn more about the Digitax SDK
Yes — ATOMO ETS integrates smoothly with standard electronic fare collection (EFC) systems and existing backend platforms.
Its open, Android-based architecture ensures full interoperability with third-party validators, payment gateways, and contactless systems already in service
Yes — the ATOMO 10 MDT and ATOMO 7 Validator can be supplied individually.
The printer, however, is available only as part of the ATOMO ETS integrated system or when paired with the ATOMO 10 MDT.
ATOMO ETS can be deployed in multiple configurations:
MDT Standalone
MDT + Printer
MDT + Printer + ATOMO 7 Validator(s)
Full ETS All-in-One configuration, combining all modules into a single integrated solution.
The system supports Android 9, 10, and 14, built on the Platform-on-Module architecture that enables easy CPU and OS upgrades.
This ensures future-proof scalability, security updates, and long-term compliance with next-generation fleet software and APIs.
By eliminating intermediate control devices and simplifying installation, ATOMO ETS reduces wiring, hardware redundancy, and maintenance needs.
This approach cuts both setup time and spare-part inventory, leading to a higher return on investment and lower total cost of ownership for operators
It provides real-time monitoring, diagnostics, and data analytics, allowing operators to optimize schedules, detect issues early, and improve fleet safety and performance.
Key efficiency factors include:
Simplified system architecture — fewer external devices mean lower wiring complexity, faster maintenance, and reduced failure points.
Extensive direct interfaces — CAN Bus, RS232/RS485, LAN, USB, and OBD II ensure deep integration with vehicle systems (engine, doors, sensors, tachograph, etc.).
Dual-CPU reliability
Low-power and Stealth Mode
Scalable Android Platform
Advanced driver and vehicle analytics
Discover more about Digitax ATOMO-10 ETS
Explore how Digitax technology brings reliability, performance, and seamless integration to your fleet operations.
CONTACT US
