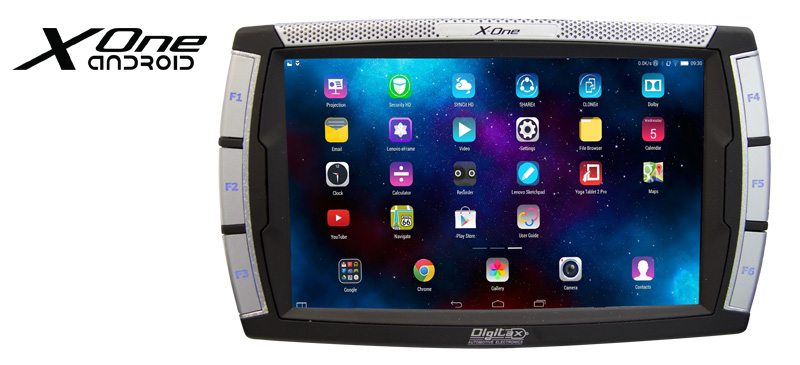

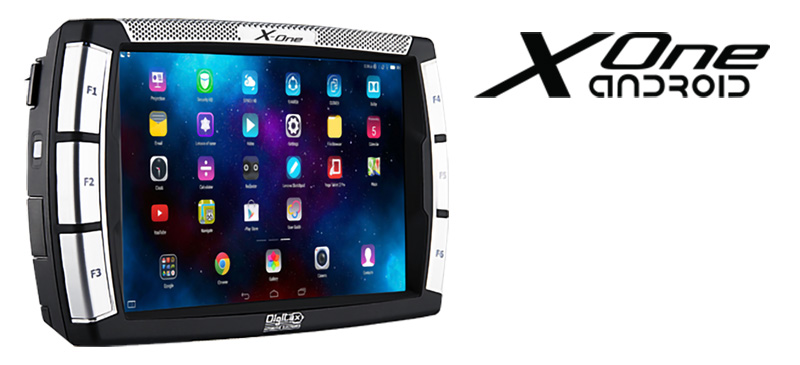

X-One Plus Android by Digitax

The new X-One Android device is an industrial grade and automotive certified mobile data terminal

Digitax’s new generation device provided with multi-mode LTE Cat.4 module and Android 6.1/7.1 OS. It includes short-range wireless communication via Wi-Fi 802.11b/g/n and BT4.1 LE, and offers data rates up to 150 Mbps. The device also combines high-speed wireless connectivity with embedded multi-constellation and high-sensitivity GPS+GLONASS+BeiDou receiver for positioning. A rich set of interfaces and devices (embedded double Camera 2 MP and 5 MP and or external ethernet IP Camera 7’ Graphic display at 1280x800 resolution provided with capacitive Touch Panel, internal mic and speaker and or external microphone inputs and speaker audio outputs, a huge set of UART peripherals), extend its functionalities and permits the use of this devices in a wide range of applications and cases.

DUAL CPU

Primary CPU:

Qualcom Quad Cortex 1.4GHz processor with Adreno 304 GPU, OpenGL ES 3.0, OpenCL, DirectX, content security and QDSP6 DSP inside, allows this Device to supply a remarkable flexibility and efficiency in computing power, together with reduced power consumption. Secondary CPU: AITP (Automotive Intensive Task Processor) dedicated to the necessary functionalities in the automotive field, like power management, Safe Shutdown, Wheel Pulses Odometer, Distance and Speed calculation, Wake-Up on Ring, Over-the-Air services for software and firmware updates. The AITP is OTA programmable for remote automatic firmware and tariff upgrade, and is always powered ON; it can turn-ON and OFF the Device and its peripherals.

IDEAL FOR FLEET MANAGEMENT

The Device represents the state-of-the-art device for security and fleets management, an ALL-IN-ONE industrial grade and automotive compliant, powerful and compact solution. Its 4G LTE modem allows very reliable communication with operating headquarters. The vehicle is located by the high performance GPS/GLONASS/BeiDo receiver.

CUSTOMIZABLE USER INTERFACE

The 7 inches 16:10 clear readable TFT Display with HD 1280x800 @60fps resolution allows to develop versatile and high accessible applications, thanks also to the integrated TouchScreen controller and to the 6 hardware keys with LEDs available. Hardware Keys avoid consumption and damage of Touch Screen for heavily used operations. The ambient light sensor allows an optimal brightness of the display in any environmental light. The power key is a Smart Power Button, completely programmable and used to perform several important tasks. Can be also disabled or programmed to trigger Ghost Mode (fake shutdown).

STEALTH MODE

Stealth mode is a special operating mode in which the system is working but the display and audio is OFF. This feature can be useful in several situations: Driver Control: System has also the wake up on ring feature, so at the central it is possible to remotely turn-ON the device (also in stealth mode so nobody can see that it is starting) in order to check vehicle position, internal audio listening and other data. Ghost Mode: It is possible to set the device so that after pressing the shut down button the system goes on stealth mode instead of turning OFF. This feature is useful if you want the device to remain always ON (it turns OFF only the display, reducing power consumption)or in an alarm situation. Alarm managing: If system is OFF and alarm button is pressed the system can be started in stealth mode, so nobody can see that the system starts. On this special start the system can be programmed for example to send an alarm message to the central, GPS position or also screenshots video or audio.

HIGH AVAILABILITY

The Device has been designed for professional automotive applications, it is fully automotive certified, can withstand glitches at car engine start, over voltages up to 32V and immunity to ESD and EMC interferences The AITP processor gives time to user applications and Android O.S. to close gracefully and safely in case of sudden disconnection of the Main Power.

INPUTS AND OUTPUTS

The Device supplies a wide range of communication channels with the external environment: Hi-Speed USB 2.0 Host, one USB Device and up to 7 RS232 and RS485 Serial Ports and Ethernet. The special programmable digital inputs and outputs allow to control devices and read signals coming from generic external equipments
