F2 Taximeter
Low cost electronic taximeter, printer capable, 6 digits for the FARE, 4 digits for the EXTRAS, 1 digit for the TARIFF index; 32 fully independent and smart tariffs automatically managed by the time, date, distance, fare amount; self-powered clock/calenda.
| Specifications |
| Dimension (WxHxD mm) |
17 x 4,5 x 2,5 |
| Weight |
Gr. 350 ca. |
| Displays |
Fare counter:
- 5 or 6 digits-Red High Luminosity Led
Extra counter:
- 5 Digits Red High-Luminosity Led
Fare counter:
1 Digit tariff index
Illuminated Front Text |
| Power Supply |
From 8,5 to 16 Volts |
| Temperature |
From -15 to 70 °C. |
| Relative Humidity |
95% |
| Mechanical Strenght |
3 g |
| Distance Unit |
From 10 cm. to 6553 meters
Step 10 cm. |
| Waiting Time Unit |
From 0,1 sec. to 6553
Step 0,1 sec. |
| Totalizator Mode |
7 + 7 Statistic Memory |
| Tariff Structure |
32 Smart and fully independent Tariffs
+4 Night Tariffs
+4 Holiday Tariffs
+4 Autofare Tariffs
+4 Autodistance Tariffs |
| Tariff Choice |
Manual
Automatic at pre-programmed:
- Distance(s)
- Time(s)
- Date(s)
- Fare(s)
- Amount(s) |
| Tariff Program Change |
- Memory Key
- By Programmer |
| Peripheral Connections |
- Printer
- Infrared Passenger Sensor
- Mobil Data Terminal |
| Communications Ports |
- Internal RS232 COM1 RS232 +/- 12 Volts STD |
| Operative Firmware |
Firmware is on Reprogrammable Flash Eprom
upgradable by reprogramming on board (Not
OTP Chip) |
| Transducer |
Mechanical Hall Effect or Internal adapter for electronic speedometer up to 100.000 l/km |
| Power Outputs |
1 Roof Light 25 Watts
4 Programmable power outputs 5 Watts |

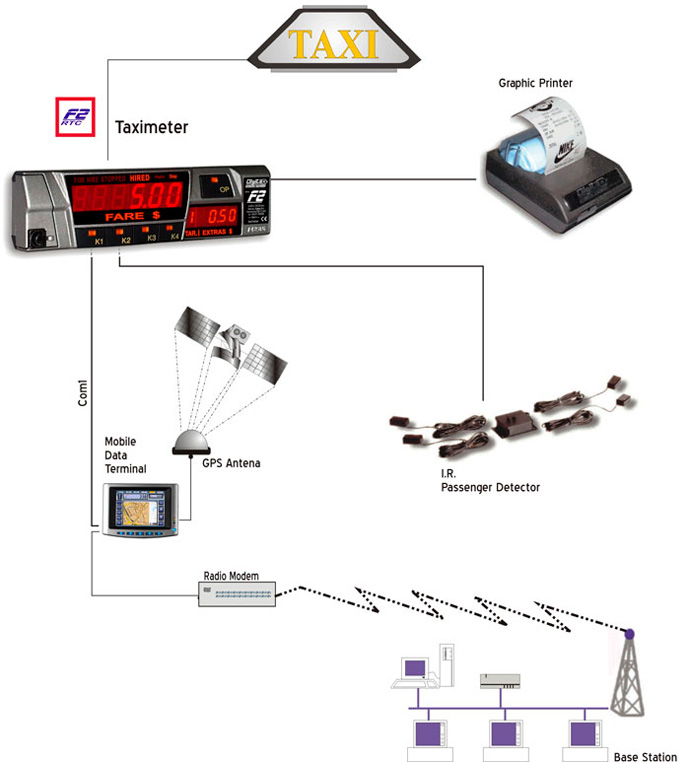

Digitax F2 Interfacing System
|
Infrared Passenger Sensor... >>
|
|
|
|
|
